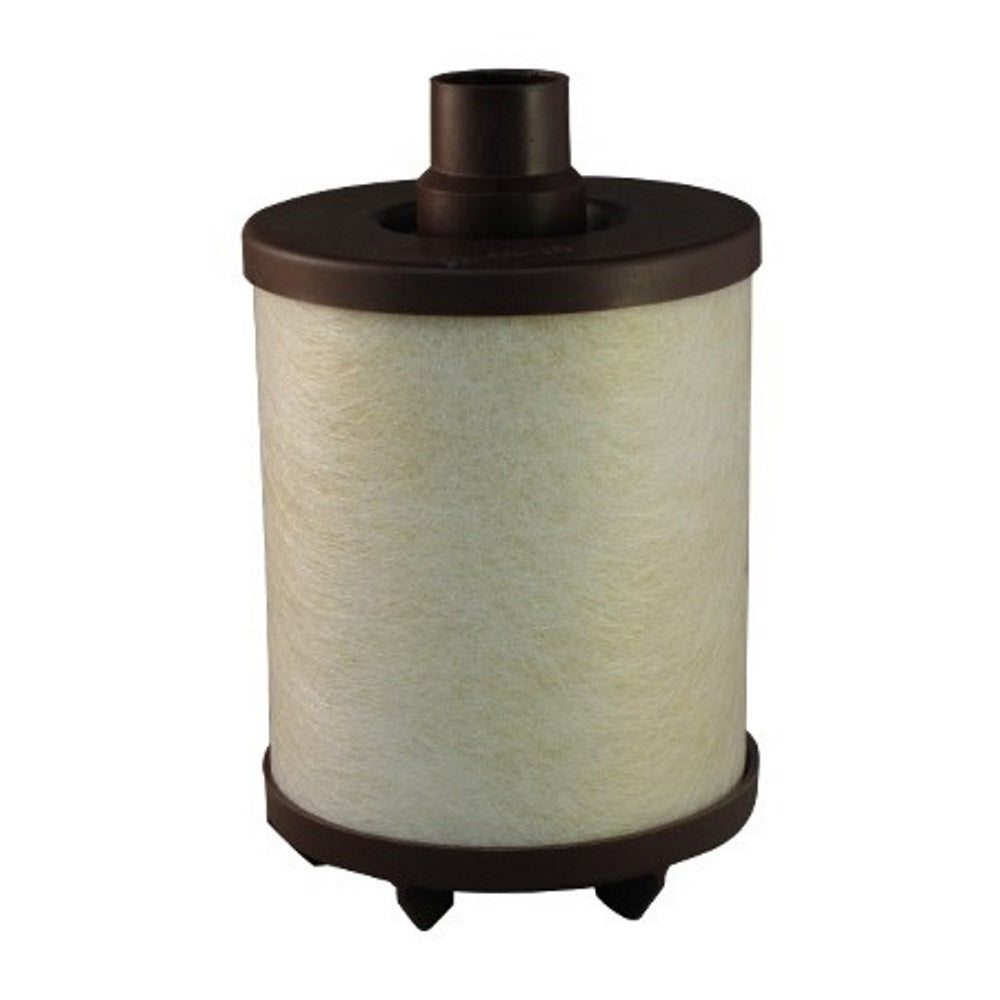

Racor CCV12000 Element W/Dual Media
Roll over image to zoom in Click on image to zoom
Racor CCV12000 Element W/Dual Media

Racor CCV12000 Element W/Dual Media

Racor - Parker HannifinSKU: 536264
MPN: CCV55222-12-10 | Catalog No: RACCCV55222121
In Stock - Ships out in 1 Business Day
Price:
$223.61

Description

[CCV55222-12-10]Racor CCV12000 ELEMENT W/DUAL MEDIA

In a robust- compact package- the patented Racor Closed Crankcase Ventilation (CCV)Filter System provides superior oil coalescence and crankcase pressure control under the most severe conditions.
The only routine maintenance required for the CCV system is filter replacement. Typical service life of the high-performance filter in diesel applications is 750 hours. Some variations in service life occur depending on load profile- engine wear condition- flow and aerosol mass concentration of crankcase emissions- and soot concentration.

How To Select A CCV Assembly:
CCV systems are designed to handle various crankcase flow rates up to 50 CFM. Traditionally- the crankcase flow rate can be calculated as follows: rated horsepower ÷ 40 = cubic feet per minute (CFM). This formula can only be used as a guide since recent improvements in piston design have produced engines with higher horsepower and lower blow-by flow rates. The blow-by flow rate of a worn engine- at time of overhaul- is generally double the flow rate when the engine is new. The flow rate of a worn engine is factored into the formula.

Additional Information

Prop 65 Warning IconWARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information, visit P65Warnings.ca.gov

All products manufactured or distributed by Racor are subject to the following, and only the following, LIMITED EXPRESS WARRANTIES, and no others: For a period of one (1) year from and after the date of purchase of a new Racor product, Racor warrants and guarantees only to the original purchaser-user that such a product shall be free from defects of materials and workmanship in the manufacturing process. The warranty period for pumps and motors is specifically limited to ninety (90) days from date of purchase. A product claimed to be defective must be returned to the place of purchase. Racor, at its sole option, shall replace the defective product with a comparable new product or repair the defective product. This express warranty shall be inapplicable to any product not properly installed and properly used by the purchaser-user or to any product damaged or impaired by external forces. Return: All returns must be recevied within 30 days of receipt. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns and help with Warranties.
