Replacement Surge Protection Module for 50 Amp Power Watchdog
Replacement Surge Protection Module for 50 Amp Power Watchdog
Roll over image to zoom in Click on image to zoom
Replacement Surge Protection Module for 50 Amp Power WatchdogReplacement Surge Protection Module for 50 Amp Power Watchdog

Replacement Surge Protection Module for 50 Amp Power Watchdog

Hughes AutoformerSKU: 572511
MPN: RSP50PWD | Catalog No: HUSRSP50PWD
In Stock - Ships out in 1 Business Day
Price:
$38.50

%3Cp%3E%3Cstrong%3EEarn%3C/strong%3E%20[points_amount]%20on%20this%20product!%3C/p%3E

Description

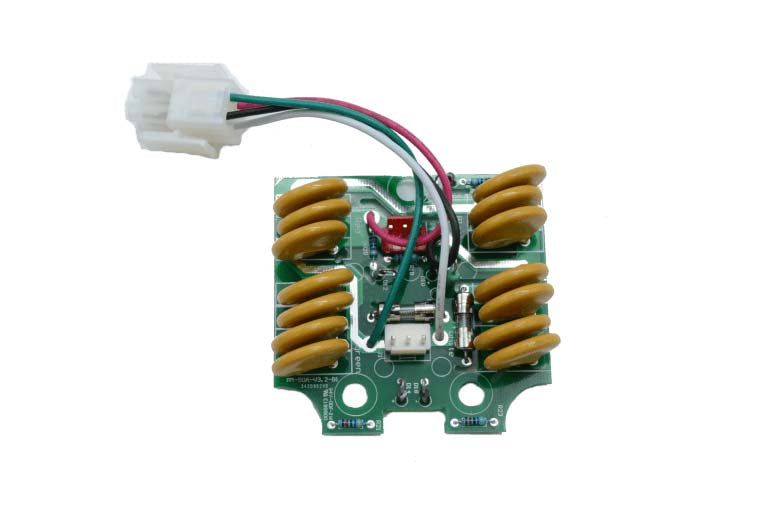

6,100 Joules Surge Protection Module
This replacement surge protection module is only for the PWD50 unit. It is designed for use only with the non-EPO version.

Simple installation! The only tool required is a Phillips screw driver.

Instructions

  1. UNPLUG THE UNIT – make sure unit is fully disconnected from power prior to installation.
  2. Unscrew 8 Phillips screws on the back of the unit.
  3. Unscrew the top and bottom cable gland nuts.
  4. Unscrew the screws holding the old surge module.
  5. Unplug the old surge module from the unit.
  6. Connect the new surge protection module.
  7. Replace all the screws and re-tighten the cable gland nuts.

6,100 Joules Surge Protection Module
This replacement surge protection module is only for the PWD50 unit. It is designed for use only with the non-EPO version.

Simple installation! The only tool required is a Phillips screw driver.

Instructions

  1. UNPLUG THE UNIT – make sure unit is fully disconnected from power prior to installation.
  2. Unscrew 8 Phillips screws on the back of the unit.
  3. Unscrew the top and bottom cable gland nuts.
  4. Unscrew the screws holding the old surge module.
  5. Unplug the old surge module from the unit.
  6. Connect the new surge protection module.
  7. Replace all the screws and re-tighten the cable gland nuts.

Additional Information

Prop 65 Warning IconWARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information, visit P65Warnings.ca.gov
