Description

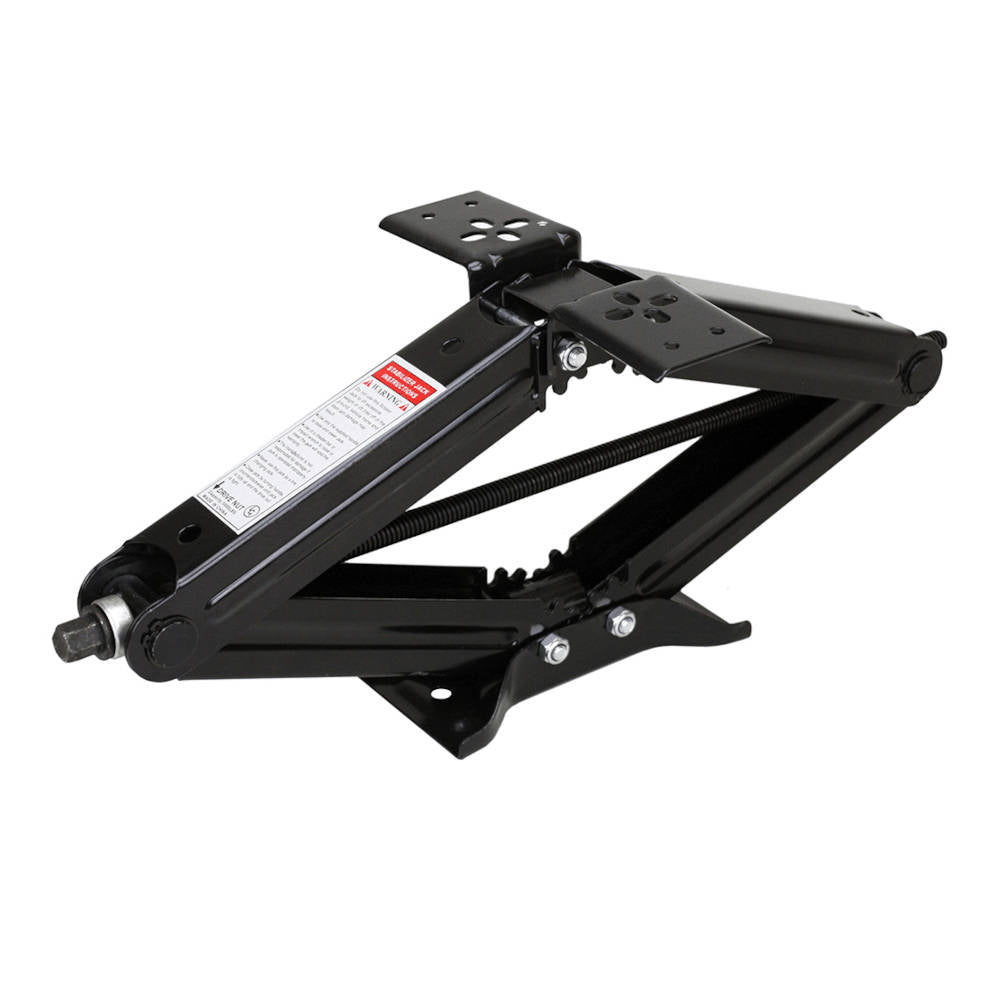

Manual RV Scissor Jack, 24", allows you to level and stabilize your 5th wheel or travel trailer with the reliability of a manual scissor jack. The 5,000 lb. load capacity helps stabilize your rig and eliminates unwanted, potentially dangerous rocking and swaying caused by improper or poor leveling. This manual jack is designed with a bow-tie base that helps to add stability on soft, uneven surfaces.
- 5,000-lb. load capacity per jack
- Single jack
- Designed for 5th wheels, travel trailers and cargo / utility trailers
- Rust-prohibitive finish on all metal surfaces
- Universal weld-on or bolt-on application
- Built with a bow-tie base for added stability
- 4-1/4" retracted height for easy storage
- Jack extends to 24"
- Crank handle sold separately
- Four mounting screws included

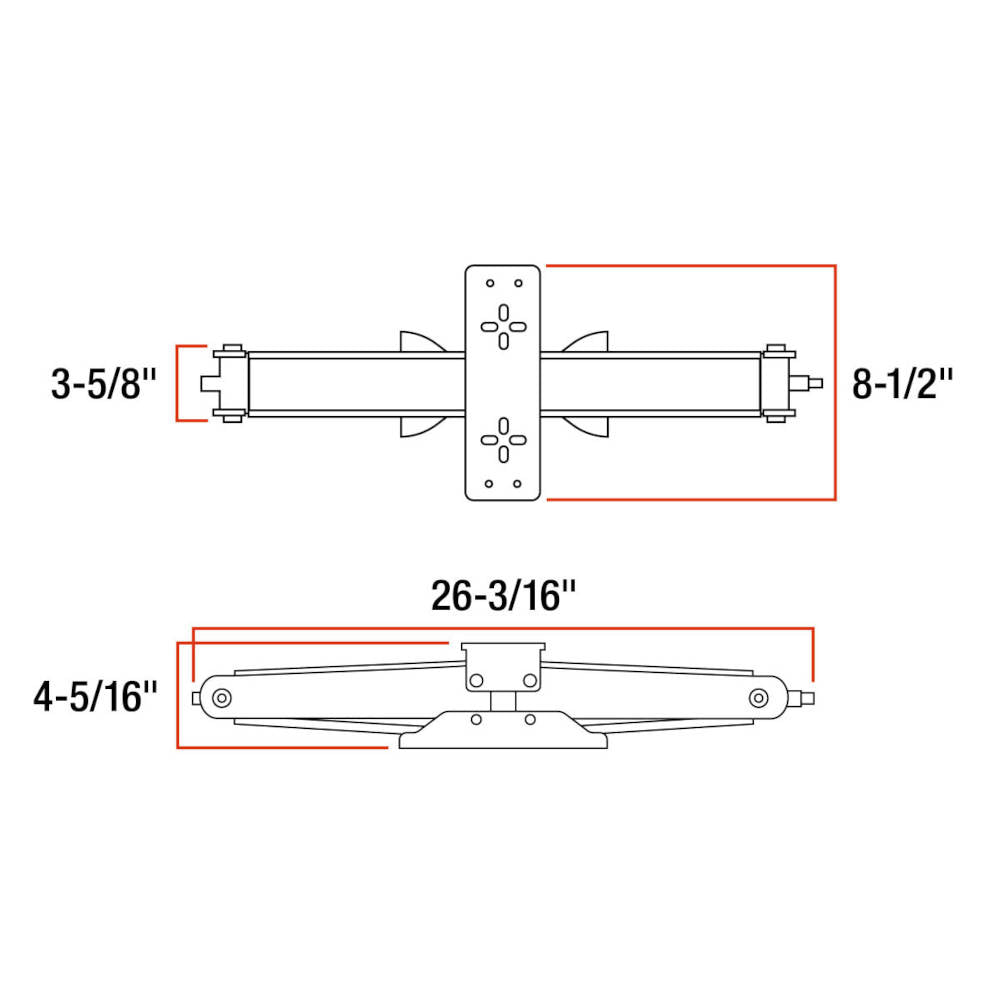

Specifications;
- Collapsed height: 4-1/4"
- Extended: 24"
- Collapsed length: 26-3/16"
- Mounting base dimensions: 10-1/4" long x 3-1/4" wide
- Large bolt hole dimensions: 11/16" long x 7/16" wide
- Small bolt hole diameter: 5/16"
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: Backed by a reliable 1-year warranty Return: All returns must be recevied within 30 days of receipt of the order. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns and help with Warranties.
