Description

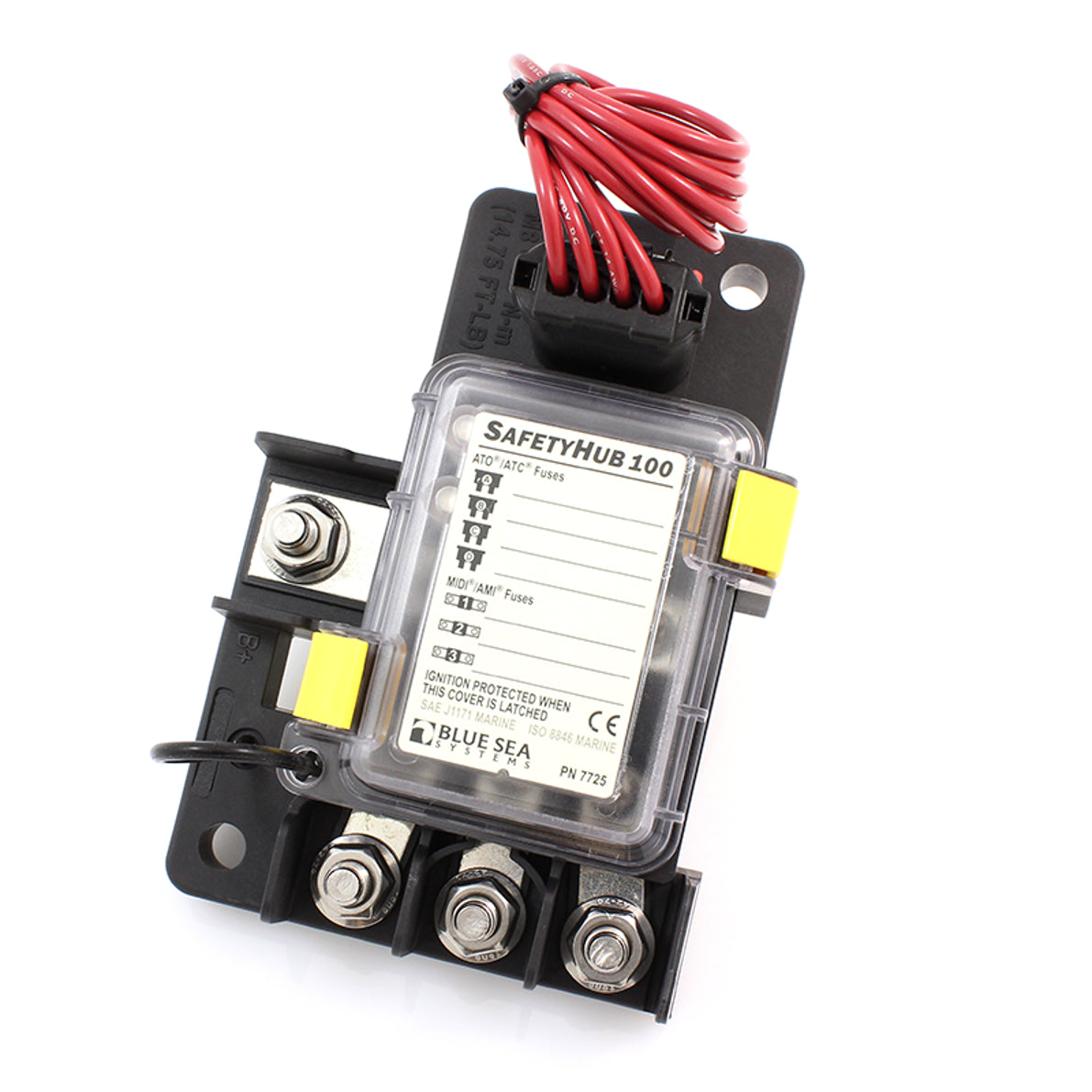

The Blue Sea Systems 7725 SafetyHub 100 Fuse Block with Connection Plug is an integrated power distribution solution that combines high-amperage and branch circuit fuse protection into a single compact assembly. Designed for marine electrical systems, it reduces wiring complexity with integrated connector plugs while providing ignition-protected circuit protection for gasoline- and diesel-powered boats. A sealed cover helps protect fuses from moisture and harsh marine conditions.
- Combines an ignition-protected fuse block with an integrated connecting plug.
- Consolidates up to seven fused circuits into one compact assembly.
- Holds up to three 30A to 200A MIDI/AMI fuses.
- Holds up to four 1A to 20A ATO/ATC fuses.
- Reduces wiring connections for a cleaner, more organized electrical installation.
- Integrated connector plugs eliminate loose wires while providing secure, waterproof connections.
- Sealed cover helps protect fuses from moisture and harsh marine environments.
- Ignition-protected design is safe for installation on gasoline-powered boats.
- Meets Coast Guard and ABYC ignition protection requirements for installation on gasoline- or diesel-powered boats.
- Operating voltage range of 12V to 32V DC.
- Maximum operating current of 280 amps.
The BLUE-7725 SafetyHub 100 Fuse Block streamlines marine power distribution by combining high-current and branch circuit protection into one sealed, ignition-protected assembly. Its compact design, integrated connectors, and multiple fuse capacities make it an efficient solution for modern marine electrical systems.
Manufacturer Part No.: 7725
