Description

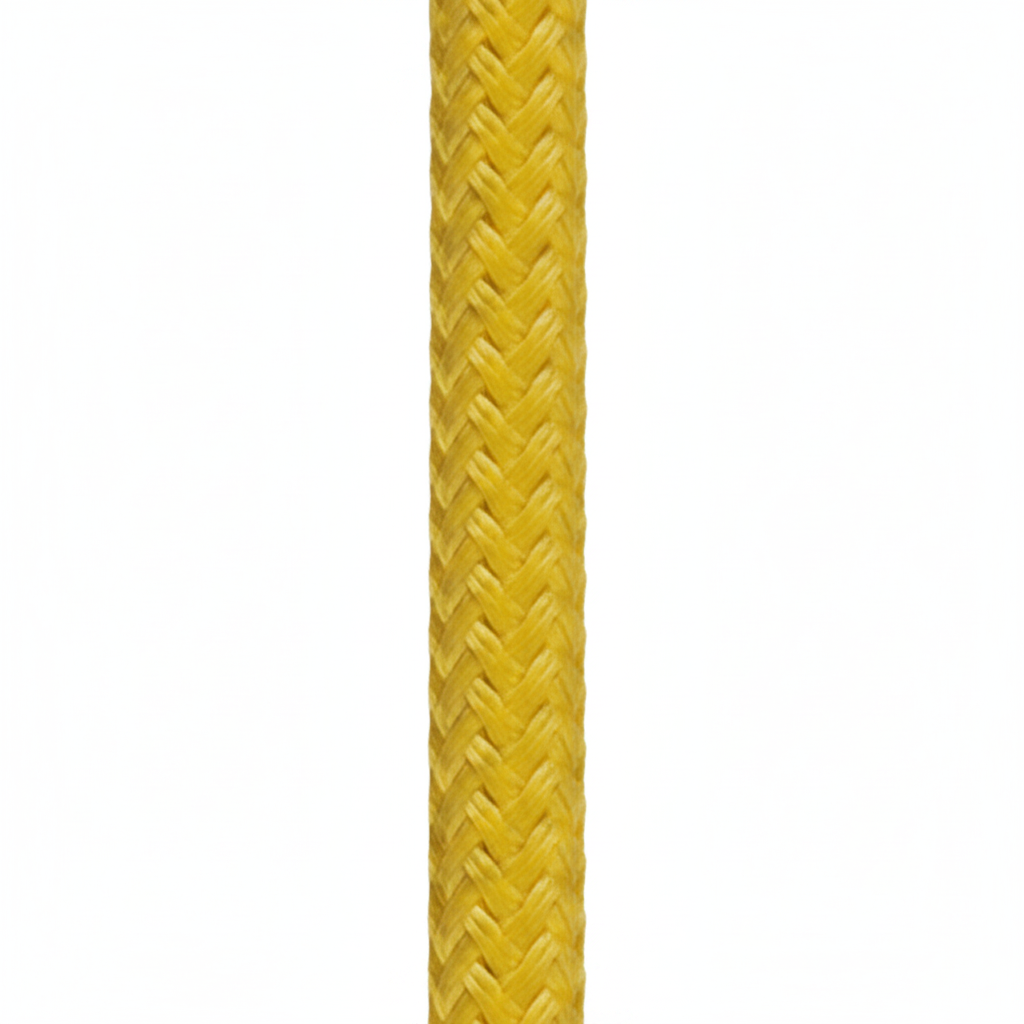

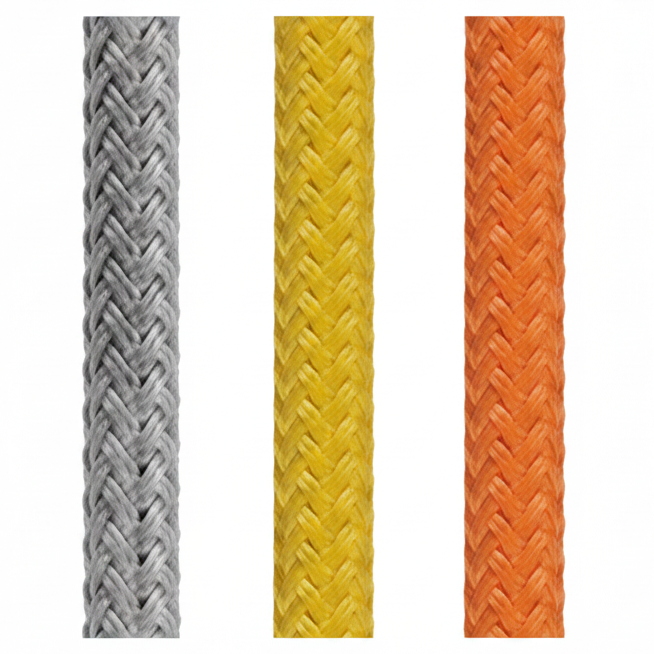

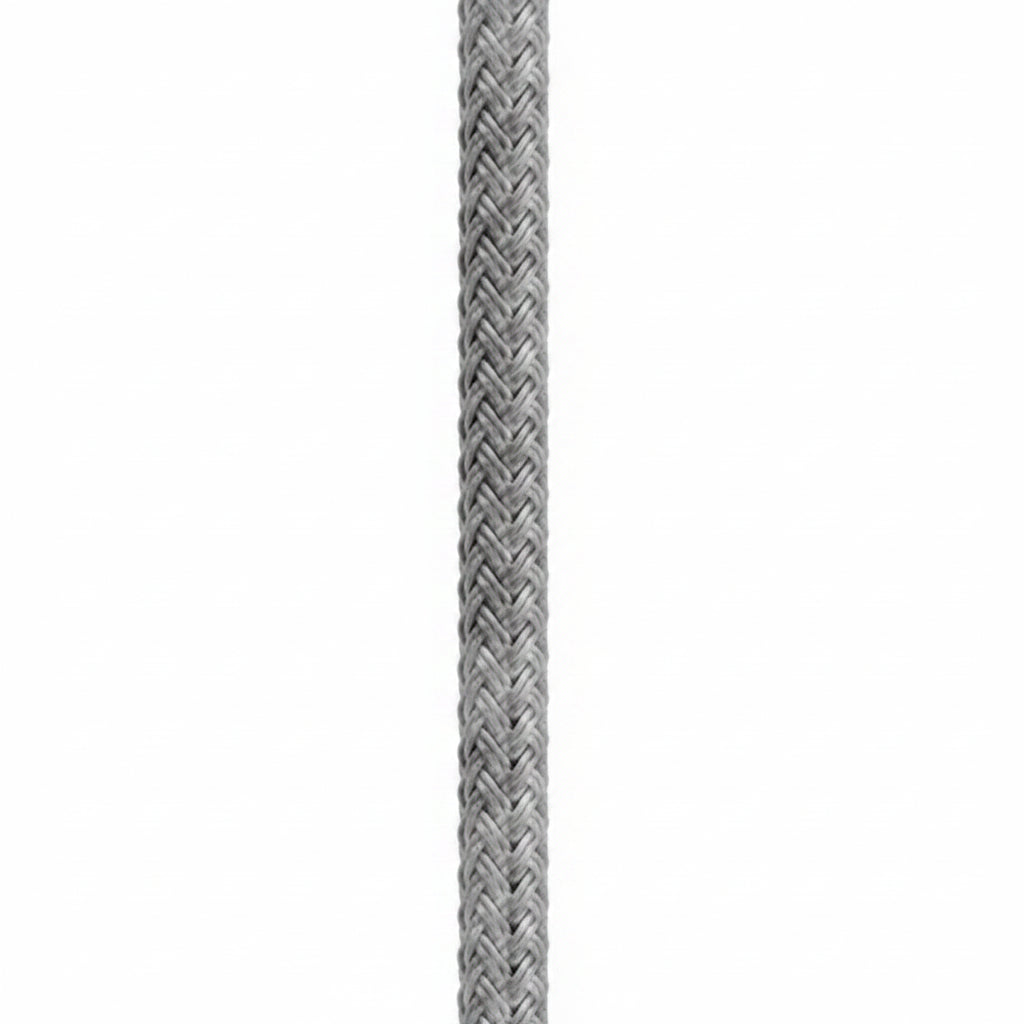

TS-II Premium has an HMPE core strength member encased in an HMPE fiber jacket. The jacket is further enhanced with Samthane coating, allowing for specific rope identification within the trawl net system. This firm, abrasion resistant line has excellent wear characteristics and works well on winch drums. Applicable splicing instructions are available upon request.
| DIAM. (INCH) | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1 1/2 | 1 5/8 | 1 3/4 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WEIGHT PER 100 FT. (LBS) | 8.1 | 9.8 | 12.5 | 16.5 | 24 | 30.5 | 39 | 46 | 66.8 | 74 | 90 |
| AVG. STRENGTH (LBS) | 21,000 | 23,000 | 39,000 | 46,000 | 64,000 | 75,000 | 91,000 | 99,000 | 138,000 | 160,000 | 186,000 |
| MIN. STRENGTH (LBS) | 17,900 | 19,600 | 33,200 | 39,100 | 54,400 | 63,800 | 77,400 | 84,200 | 117,000 | 136,000 | 158,000 |
