Description

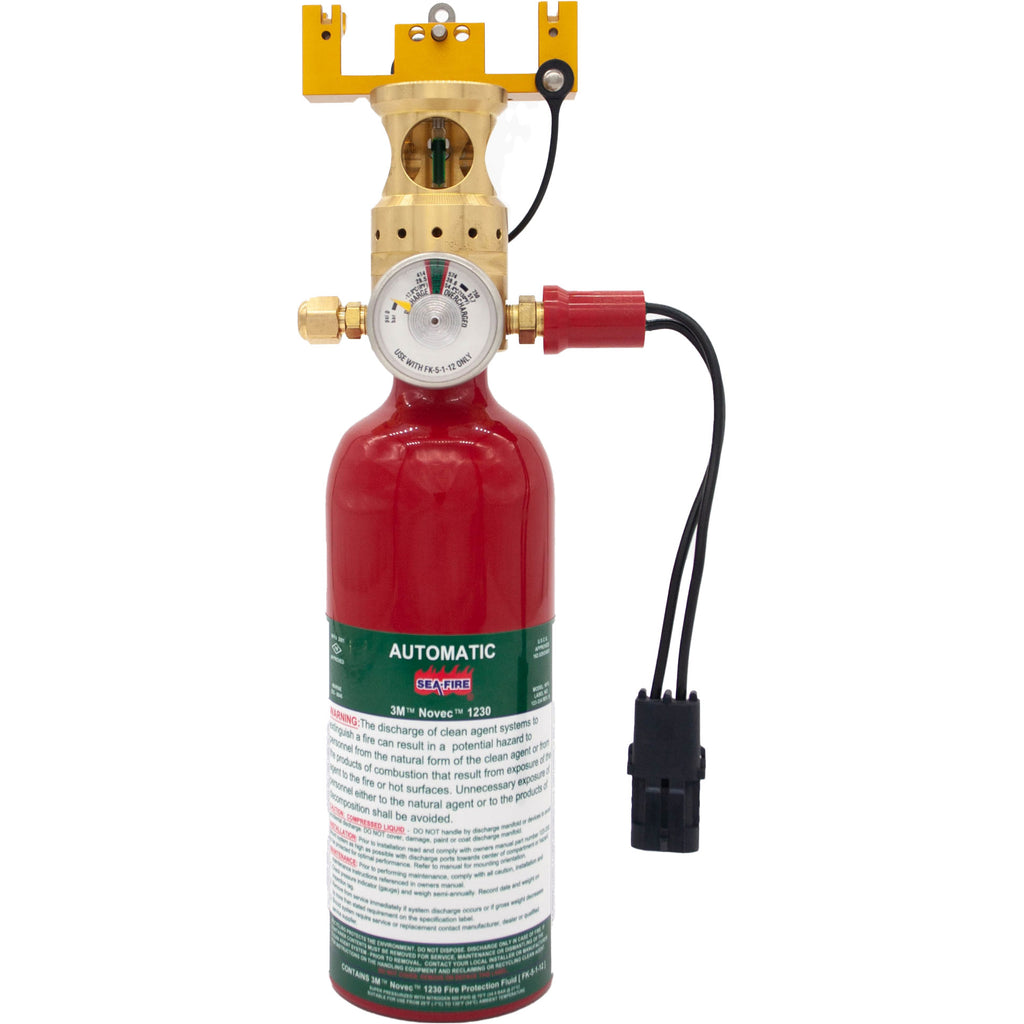

Pre-engineered marine fire suppression systems are fixed installations with 3M NOVEC 1230 extinguishing agent. The system protects a given volume of an enclosure incorporating various discharge modes such as automatic heat activation or manual release by way of a mechanical pull cable. Pre-Engineered means the system has been designed and tested to specific criteria which takes into consideration the following factors:
- Protected space volume
- Agent weight required
- System cylinder size and fill density
- Nitrogen super-pressurization
- Nozzle discharge flow rate of extinguishing agent
- Discharge time (max 10 seconds)
- The manual fire extinguishers require a SMAC manual release cable.
- The automatic/manual fire extinguishers require a SMAC Auto/Manual Cable
- Installation Manual
- NOVEC PRE-ENGINEERED CE CERTIFICATE
- Data Sheet NFG 25-500-001
- NFG models are non-refillable
- Operating Temperature Range 20-130°F (-7- 55°C)
- Activation Temp: - NFG 25-75 | 200-250°F (93-121°C) - NFG 76-100 | 175-225°F (79-107°C)
FK-5-1-12 Agent • People safe at design concentration • Environmentally responsible (no ozone depletion and GWP (global warming potential) of less than 1) • Globally accepted • Not damaging to equipment & machinery • No clean-up after discharge • No foreseeable phase-out schedule
• Pre-engineered to protect a specific volume of enclosed space • Automatically discharged through heat activation • System supervisory pressure switch • Comes with safety pin to arm/disarm manual cable release during inspection/ maintenance • Equipped with bi-directional cable release bracket for ease of install from either side of cylinder • Made in the U.S.A.
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
