Description

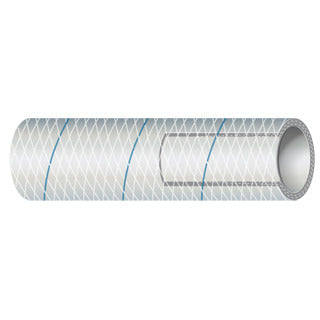

Reinforced PVC – Clear White with Blue Tracer – Series No. 164
Size Range – 3/8″ – 3/4″ 9.525mm – 19.05mm Warranty – Limited Lifetime
Clear White Blue Tracer PVC Tubing has a white FDA formula vinyl tube. It has a clear vinyl cover, polyester braid reinforcement and 250# psi burst pressure. This hose is primarily used for pressurized water system supply (hot or cold), drain lines (sink, shower , icebox), wash down pump connections and head intake.
APPLICATIONS
May Kink in Applications: – (Flexibility – 3)
Designed to give Excellent Service for:
• Non-Pressurized Supply
• Pressurized Supply: cold
Designed to give Good Service in normal Applications:
• Pressurized Supply: hot
• Drain Lines Below Water Line
• Drain Lines To Sump or Above Water Line
• Water Tank Vent
Not Available in Size Range:
• Water Tank Fill
Order by the foot - put total quantities in the qty box and you will receive one continuous length. 50' max length.
ORDER INFORMATION
| I.D. | MM | O.D. | MM | Burst Pressure | Wt “C” | Bulk Pack 250′ (76.2m) Coil Code# | 50′ (15.2) R/O Ctn. Code# | Dist. PKg. 25′ (7.6m) Polypac Code# | 10′ (3.1m) Polypac Code# |
| 3/8″ | 9.5 | 9/16″ | 14.3 | 250# | 7 | 16-164-0380 | 16-164-0386 | 16-164-0385 | 16-164-0383 |
| 1/2″ | 12.7 | 11/16″ | 17.5 | 250# | 10 | 16-164-0120 | 16-164-0126 | 16-164-0125 | 16-164-0123 |
| 5/8″ | 15.9 | 13/16″ | 20.6 | 250# | 13 | 16-164-0580 | 16-164-0586 | 16-164-0585 | 16-164-0583 |
| 3/4″ | 19.1 | 15/16″ | 23.8 | 250# | 17 | 16-164-0340 | 16-164-0346 | 16-164-0345 | 16-164-0343 |
