Description

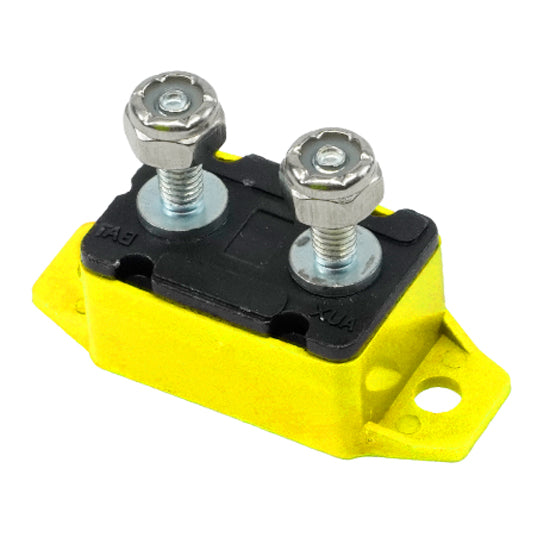

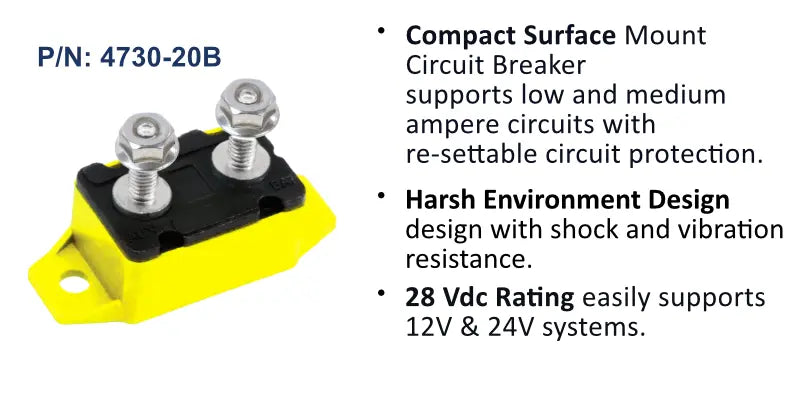

• Compact Surface Mount Circuit Breaker supports low and medium ampere circuits with re-settable circuit protection.
• Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
• Ignition Protected safe for installation in closed compartments with potential explosive gases
• Weather Resistant Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• Manual Reset - Type III maintains support easy re-set of power after potential faults are cleared.
28 Vdc Rating: easily supports 12 and 24 Vdc applications while offering improved protection rather than using fuses.
Optional Protective Cover provides protection from inadvertent shorts from circuit breaker studs to other positive studs or ground points.
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS CURRENT (AMPS) : 20
MAX VOLTAGE (VDC) : 28
INTERRUPT CURRENT @ 12Vdc (Amps) : 2,500
INTERRUPT CURRENT @ 24VDC (AMPS) : 1,500
OPERATION TYPE: Type III Manual Reset
INGRESS PROTECTION RATING: IP66
