Description
Grade: 316 Stainless Steel

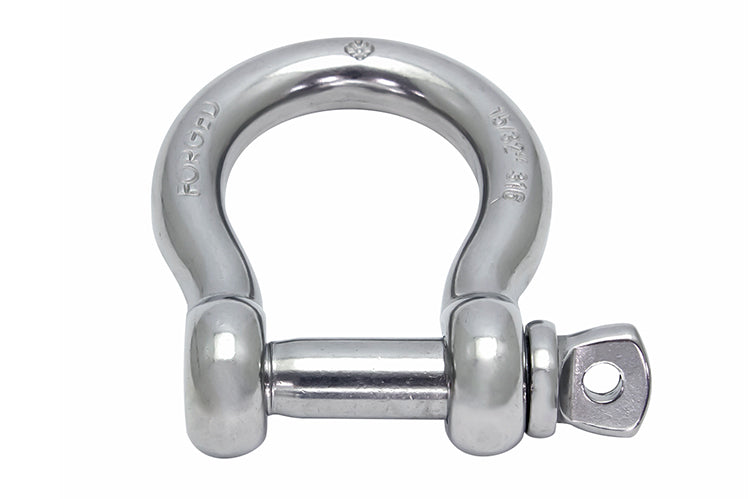

This Forged Bow Shackle with screw pin and is offered in sizes ranging from 3/16″ to 3/4″. This bow shackle is made from grade 316 stainless steel for maximum corrosion resistance, which is ideal for marine and industrial applications.
ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.

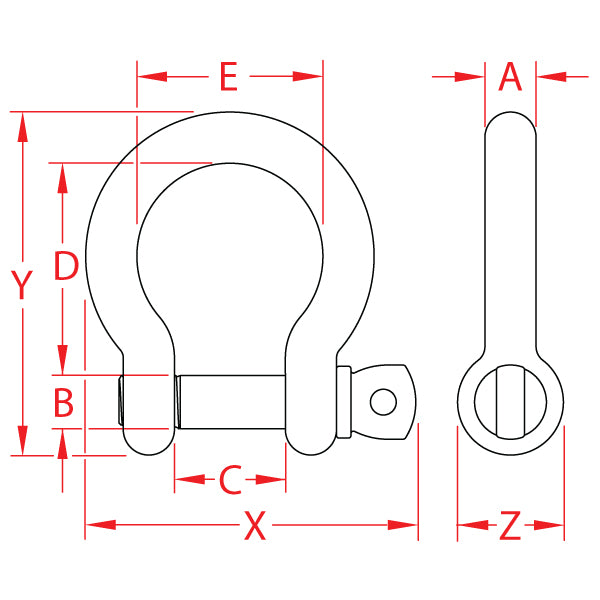

| ITEM | A (size) |
B | C | D | E | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| S0119-0005 | 3/16″ | 0.19″ | 0.41″ | 0.78″ | 0.67″ | 1.23″ | 1.25″ | 0.41″ | 500 | 0.03 |
| S0119-0006 | 1/4″ | 0.23″ | 0.52″ | 0.93″ | 0.83″ | 1.48″ | 1.50″ | 0.47″ | 750 | 0.06 |
| S0119-0008 | 5/16″ | 0.31″ | 0.66″ | 1.25″ | 1.11″ | 1.95″ | 2.05″ | 0.62″ | 1,000 | 0.14 |
| S0119-0010 | 3/8″ | 0.39″ | 0.83″ | 1.57″ | 1.28″ | 2.43″ | 2.52″ | 0.78″ | 2,000 | 0.26 |
| S0119-0012 | 15/32″ | 0.47″ | 0.98″ | 1.96″ | 1.50″ | 2.86″ | 3.07″ | 0.94″ | 3,000 | 0.46 |
| S0119-0016 | 5/8″ | 0.62″ | 1.31″ | 2.49″ | 2.20″ | 3.96″ | 3.93″ | 1.20″ | 4,000 | 1.09 |
| SO119-0020 | 3/4″ | 0.77″ | 1.62″ | 3.10″ | 2.55″ | 4.72″ | 5.13″ | 1.57″ | 5,500 | 2.09 |
