Description

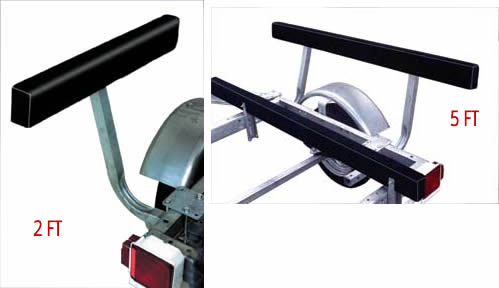

The Trailer Bunk Board Guide Kits set up your trailer to cradle your boat and ease loading our boat back on after a day on the water. All hardware is hot dip galvanized and the boards are carpeted.
- Fits frames up to 4-1/4" in size
- L-Shaped arm brackets mount 19" above trailer frame
- Brackets allow 13" of side adjustment each side
- Sold in pairs (one for each side of the trailer)
- All hardware included
The 24" Bunk Board Guide Kit includes:
- 2 - 24" Carpeted Bunks
- 2 - 34" x 1-1/2" sq. Support Tube
- 2 - Mounting Plate
- 2 - Channel Bracket
- 8 - 3/8"x 5" Continuous thread Hex Head Bolt
- 2 3/8"x 2-1/2" Hex Head Bolt
- 10 - 3/8" Hex Nyloc Nut
- 4 - 3/8" Flat Washer
- 2 - Plastic End Cap
- 16 - 3/8" Washer
- 4 - Swivel Brackets
- 8 - Hex Head Screws
- 2 - 60" Carpeted Bunks
- 4 - 34" x 1-1/2" sq. Support Tube
- 4 - Mounting Plate
- 4 - Channel Bracket
- 16 - 3/8"x 5" Continuous thread Hex Head Bolt
- 4 - 3/8"x 2-1/2" Hex Head Bolt
- 20 - 3/8" Hex Nyloc Nut
- 4 - 3/8" Flat Washer
- 4 - Plastic End Cap
- 32 - 3/8" Washer
- 4 - Swivel Brackets
- 8 - Hex Head Screws
