Description

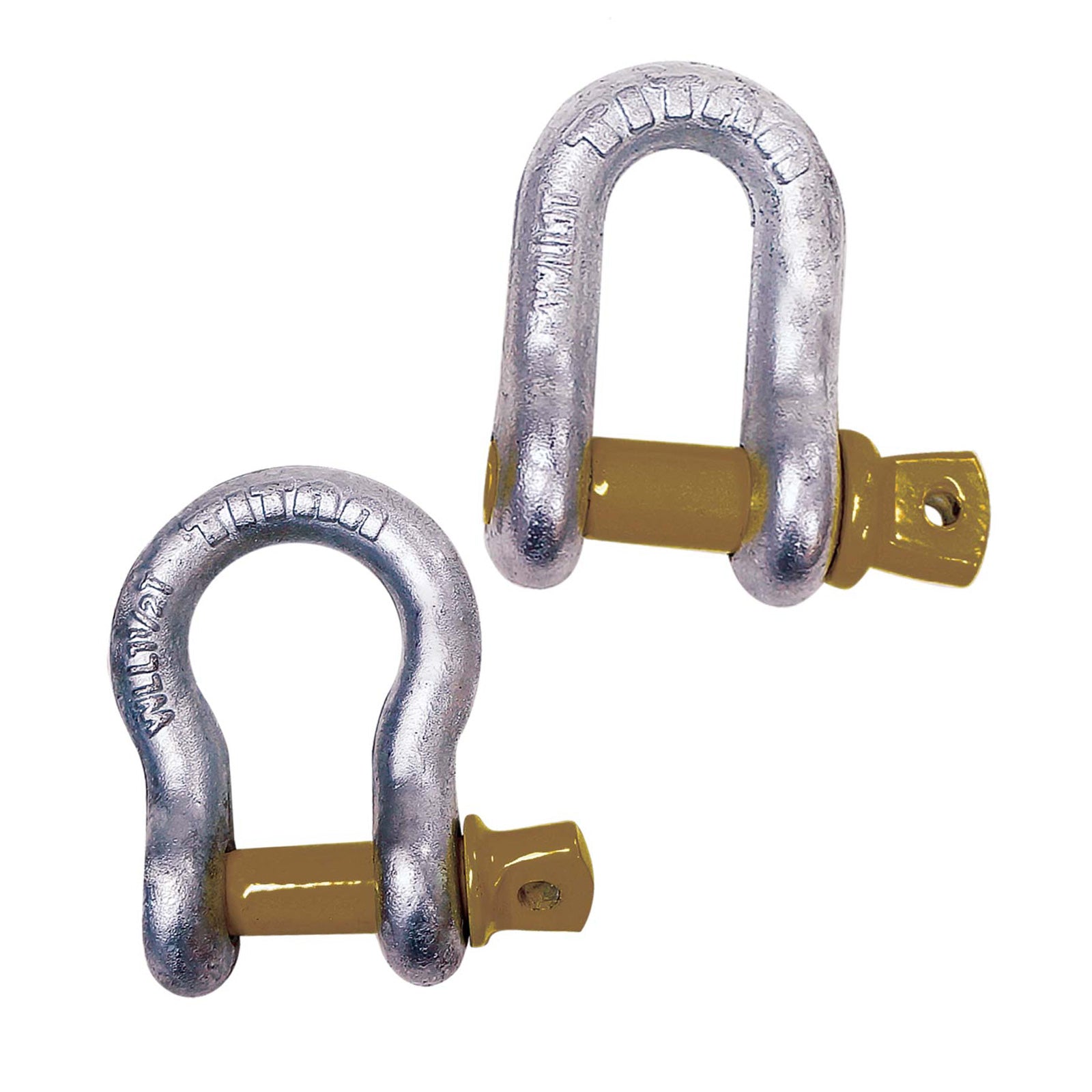

Hot Dip Galvanized Shackles
FINISH: HOT DIP GALVANIZED PACKAGING: INDIVIDUALLY LABELED & BAGGED SPECS: EXCEEDS RR–C–271 TYPE IV GRADE A
All of our Marine Shackles are Hot Dip Galvanized for premium corrosion and forged for strength. Hot dip galvanized coating on both the shackle & pin. Please check manufacturer’s specification prior to use. Certificate available from the manufacturer upon request.
- Easily identifiable copper-colored pin
- Anchor and Chain types
- Proof-tested & load rated
- Working load limit, size, logo stamped on every shackle
| PART ID | SIZE | WORKING LOAD LIMIT | ||||||
| BAIL | PIN | |||||||
| in | mm | in | mm | kn | lb | kg | ||
| Anchor Type | 10319050 | 1/4 | 6 | 5/16 | 8 | 5 | 1100 | 500 |
| 10319051 | 5/16 | 8 | 3/8 | 10 | 7.5 | 1650 | 750 | |
| 10319052 | 3/8 | 10 | 7/16 | 11 | 10 | 2200 | 1000 | |
| 10319053 | 7/16 | 11 | 1/2 | 13 | 15 | 3300 | 1500 | |
| 10319054 | 1/2 | 13 | 5/8 | 16 | 20 | 4400 | 2000 | |
| 10319055 | 5/8 | 16 | 3/4 | 19 | 32.5 | 7150 | 3250 | |
| 10319056 | 3/4 | 19 | 7/8 | 22 | 47.5 | 10450 | 4750 | |
| 10319057 | 7/8 | 22 | 1 | 25 | 65 | 14300 | 6500 | |
| 10319058 | 1 | 25 | 1 1/8 | 29 | 85 | 18700 | 8500 | |
| 10319059 | 1 1/8 | 29 | 1 1/4 | 32 | 95 | 20900 | 9500 | |
| 10319060 | 1 1/4 | 32 | 1 3/8 | 35 | 120 | 26400 | 12000 | |
| 10319061 | 1 3/8 | 35 | 1 1/2 | 38 | 135 | 29700 | 13500 | |
| 10319062 | 1/4 | 6 | 5/16 | 8 | 5 | 1100 | 500 | |
| Chain Type | 10319063 | 5/16 | 8 | 3/8 | 10 | 7.5 | 1650 | 750 |
| 10319064 | 3/8 | 10 | 7/16 | 11 | 10 | 2200 | 1000 | |
| 10319065 | 7/16 | 11 | 1/2 | 13 | 15 | 3300 | 1500 | |
| 10319066 | 1/2 | 13 | 5/8 | 16 | 20 | 4400 | 2000 | |
| 10319067 | 5/8 | 16 | 3/4 | 19 | 32.5 | 7150 | 3250 | |
| 10319068 | 3/4 | 19 | 7/8 | 22 | 47.5 | 10450 | 4750 | |
| 10319069 | 7/8 | 22 | 1 | 25 | 65 | 14300 | 6500 | |
| 10319070 | 1 | 25 | 1 1/8 | 29 | 85 | 18700 | 8500 | |
| 10319071 | 1 1/8 | 29 | 1 1/4 | 32 | 95 | 20900 | 9500 | |
| 10319072 | 1 1/4 | 32 | 1 3/8 | 35 | 120 | 26400 | 12000 | |
| 10319073 | 1 3/8 | 35 | 1 1/2 | 38 | 135 | 29700 | 13500 | |
