Description

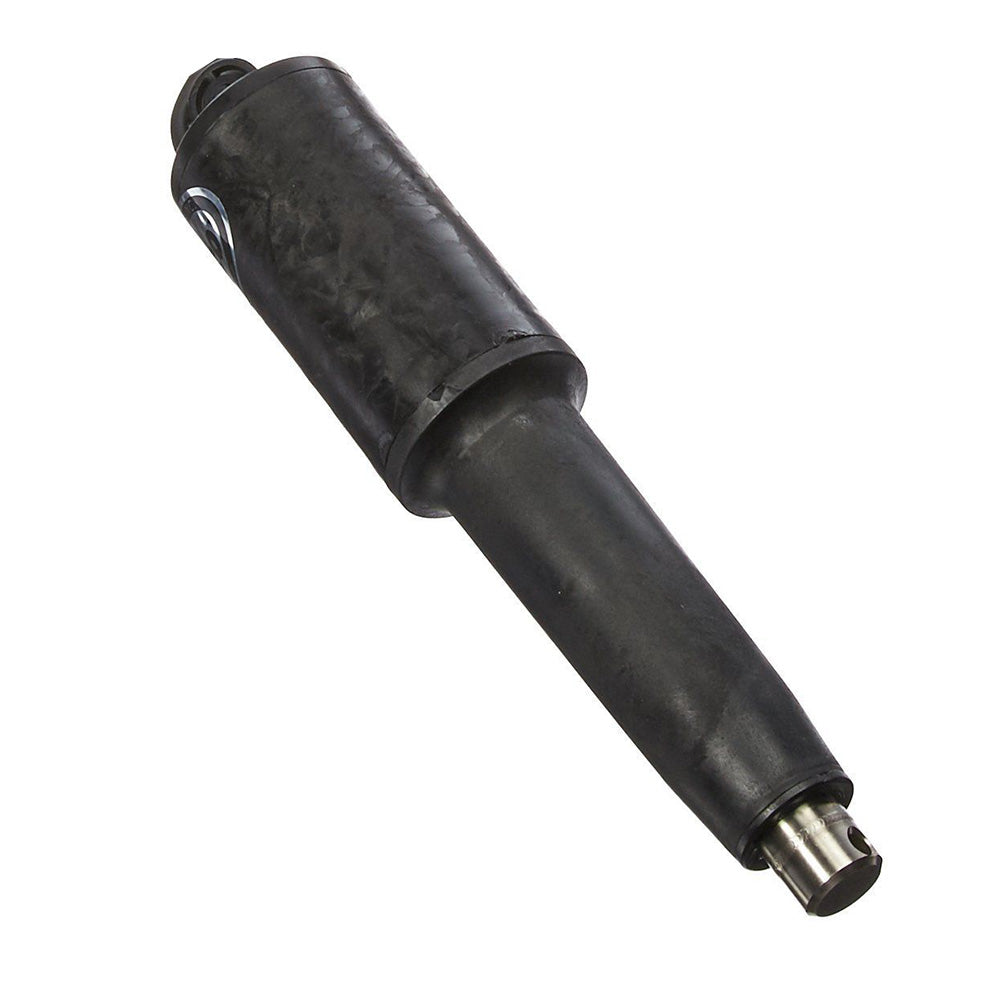

Trim Tab Actuator, 102 XD Extreme Duty 4.25" Stroke, 5/16" Holes
- 12 volt DC operation
- 4 1/4 in stroke
- 13 in. overall length when fully retracted
- 12 in. pin to pin length
- 5/16 in top and bottom cap hole sizes
- Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing
- High-impact UV resistant nylon 66, 50% glass fiber reinforced thermoplastic housing
- Corrosion proof Vandar cap and mounts
- Stainless steel ram will not flex
- Self-locking ballscrew locks into position and is twice as powerful compared to typical hydraulics
- High-torque motor easily pushes 500 lbs
- Double o-ring design for a reliable seal
- CE certified
Manufacturer: Lenco Marine, Inc
Category: Trim Tab Parts and Accessories
