Description

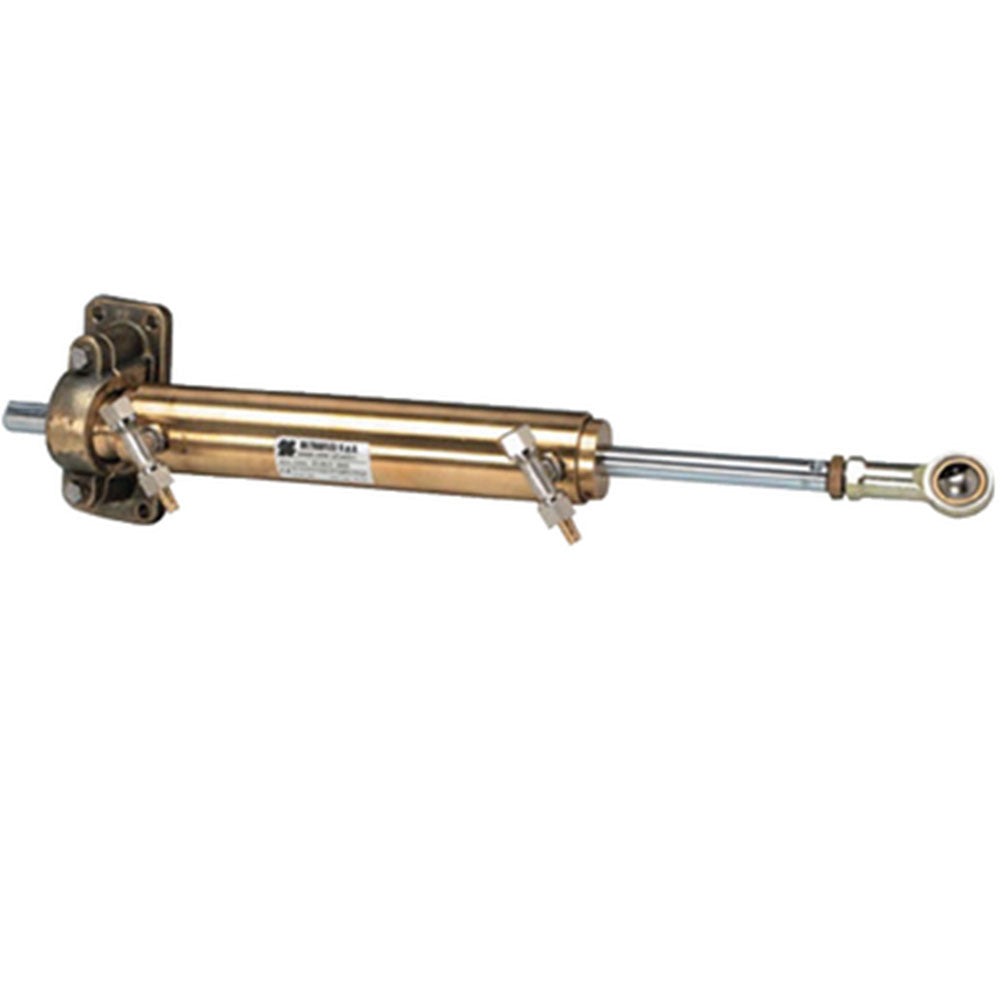

Inboard hydraulic steering cylinder works with Uflex marine hydraulic steering helms to provide smooth, fatigue-free steering.
Uflex Brass Hydraulic Steering Cylinders. UC293-1 Cross Reference to Hynautics HC5314.
- Inboard Cylinder
- Balanced cylinder; the number of turns lock-to-lock is equal port to starboard
- Volume 293 CC 17.8 cu. inch
- Output force 2545 lbs.
- Torque 12816 lbs.
- Inside diameter 1.97 in.
- Stroke 7 in.
- 3/8 in. fittings for high pressure flex hose
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: Two Year Limited Warranty. Uflex USA, Inc. warrants that all products manufactured by Uflex USA, Inc or Ultraflex S.p.A. and sold by Ulflex USA to the retail purchaser that for two 2 years after the date of manufacture to be free from defects due to material or workmanship, subject to the exclusions below. Improper installation VOIDS this warranty. Installation should only be attempted by a trained and qualified technician. Return: Restocking charge will apply at a minimum of 20% for all product returned. All returns must be received within 30 days or receipt. Important: For defects or warranty issues, contact Uflex directly.
