Description

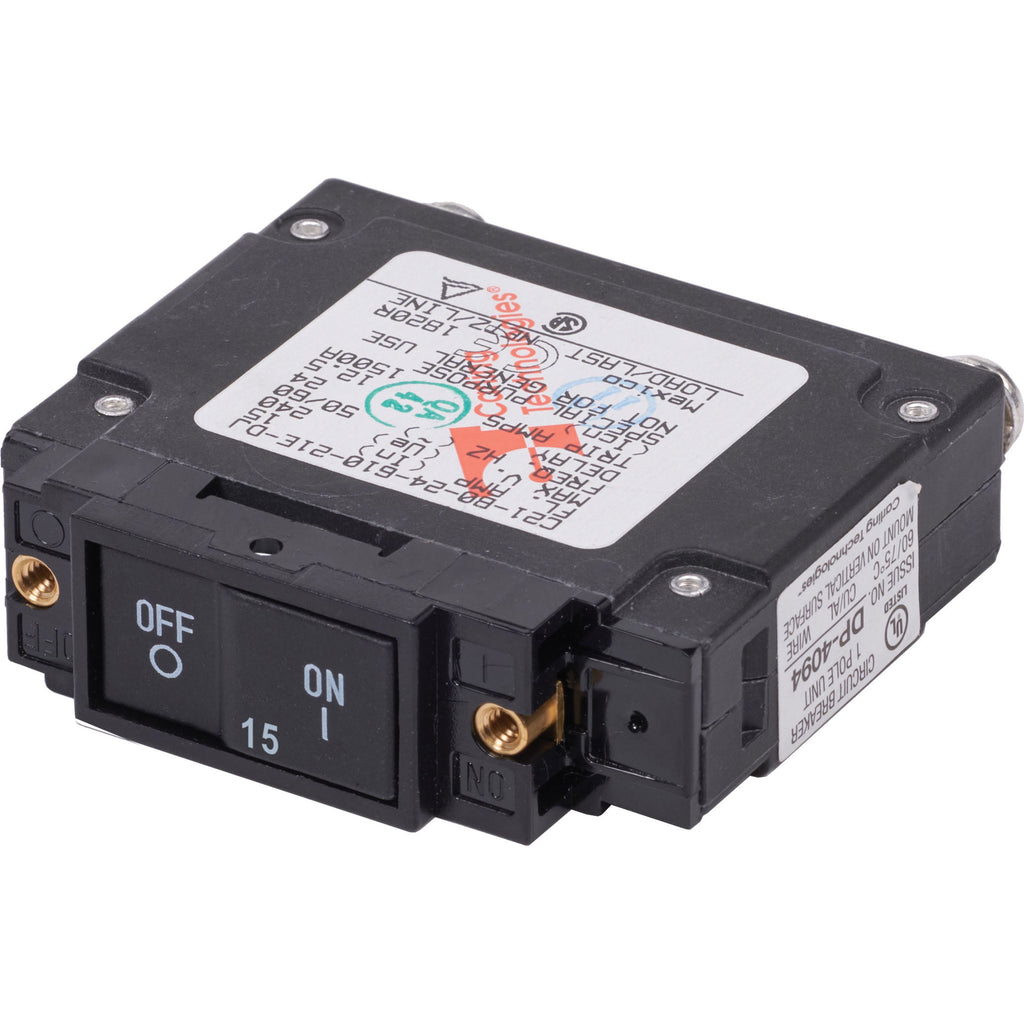

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
| Specifications | |
|---|---|
| Amperage | 15A AC |
| Actuator Style | Flat Rocker |
| Poles | 1 |
| Maximum Voltage | 240V AC |
| Circuit Breaker Type | Magnetic Hydraulic—Trip free |
| Terminal Type | #10-32 Screw Tin-Plated Brass |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Maximum Terminal Torque | 15-20 in-lb (1.69 Nm) |
| Mounting Screw | #6-32 SS |
| Mounting Screw Torque | 7-9 in-lb (0.79 Nm) |
