Description

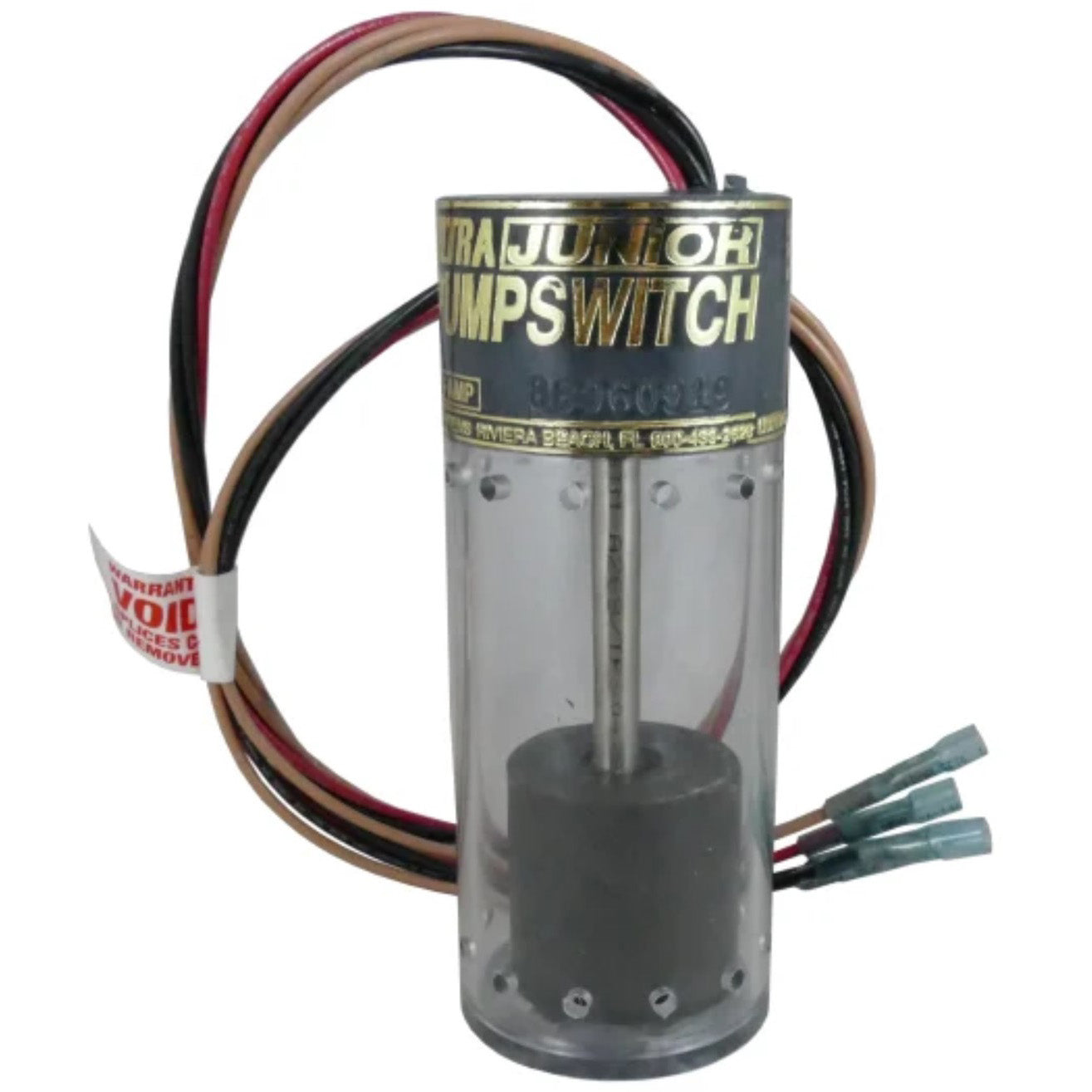

Ultra Bilge Pump Switch Junior for 24/32 Volt systems. This model comes with its own mounting brackets. A commercial quality switch with sealed, extra-long lead wires terminated with adhesive-lined butt slices.
Ultra Bilge Pump Switches, with their enclosed design, have earned a reputation for reliability and non-binding, clog-free operation.
NOTE - This product is the bilge pump switch only. Bilge pumps are sold separately. The Junior switch does not have high water alarm circuitry.
- Relay output: 30 amp internal relay, 15 amp pump load
- 1-1/4" On/Off float height differential
- Dimensions: Height – 6-1/4” Diameter – 2-1/2”
- Patented design provides maximum immunity to clogging, sticking, or pump burnout

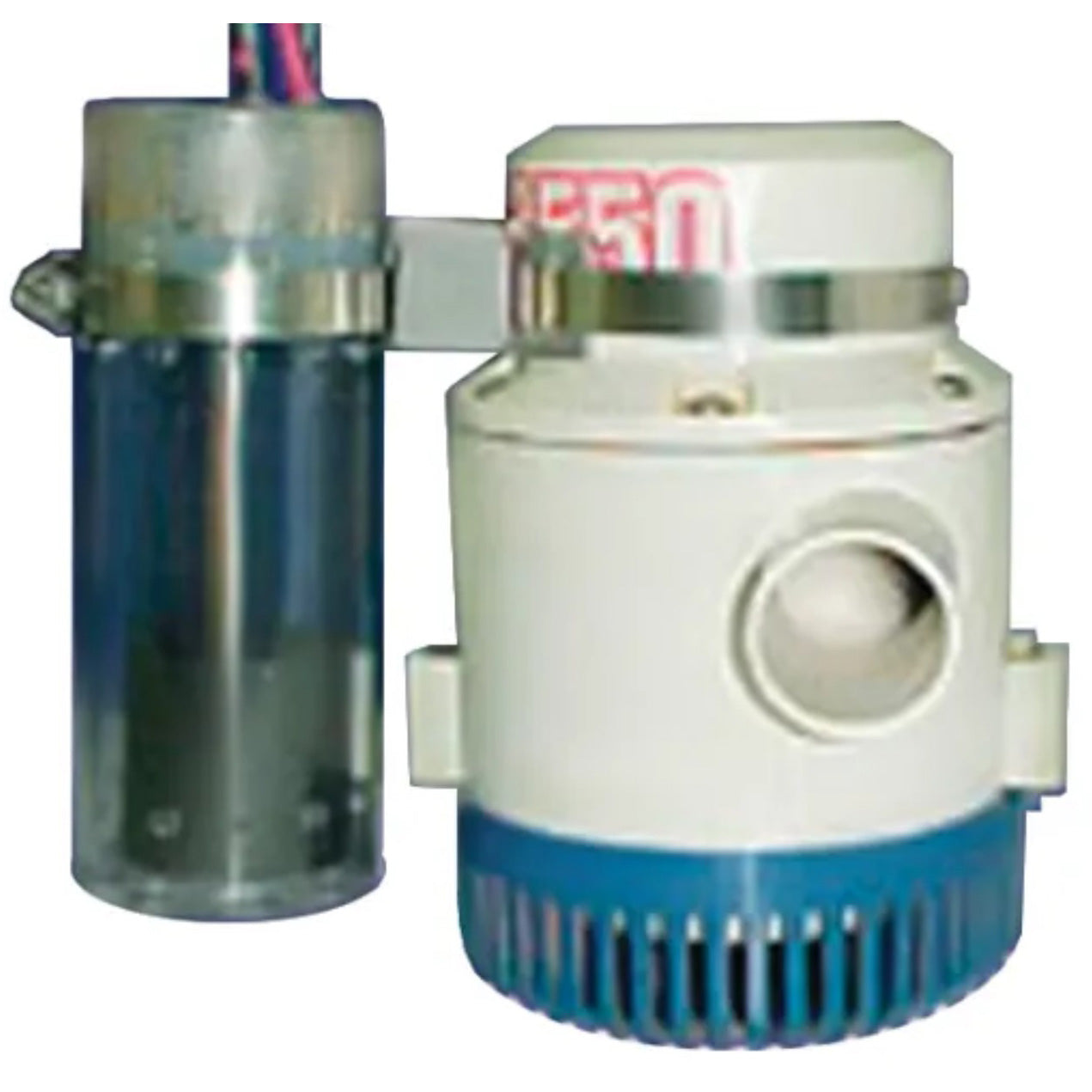

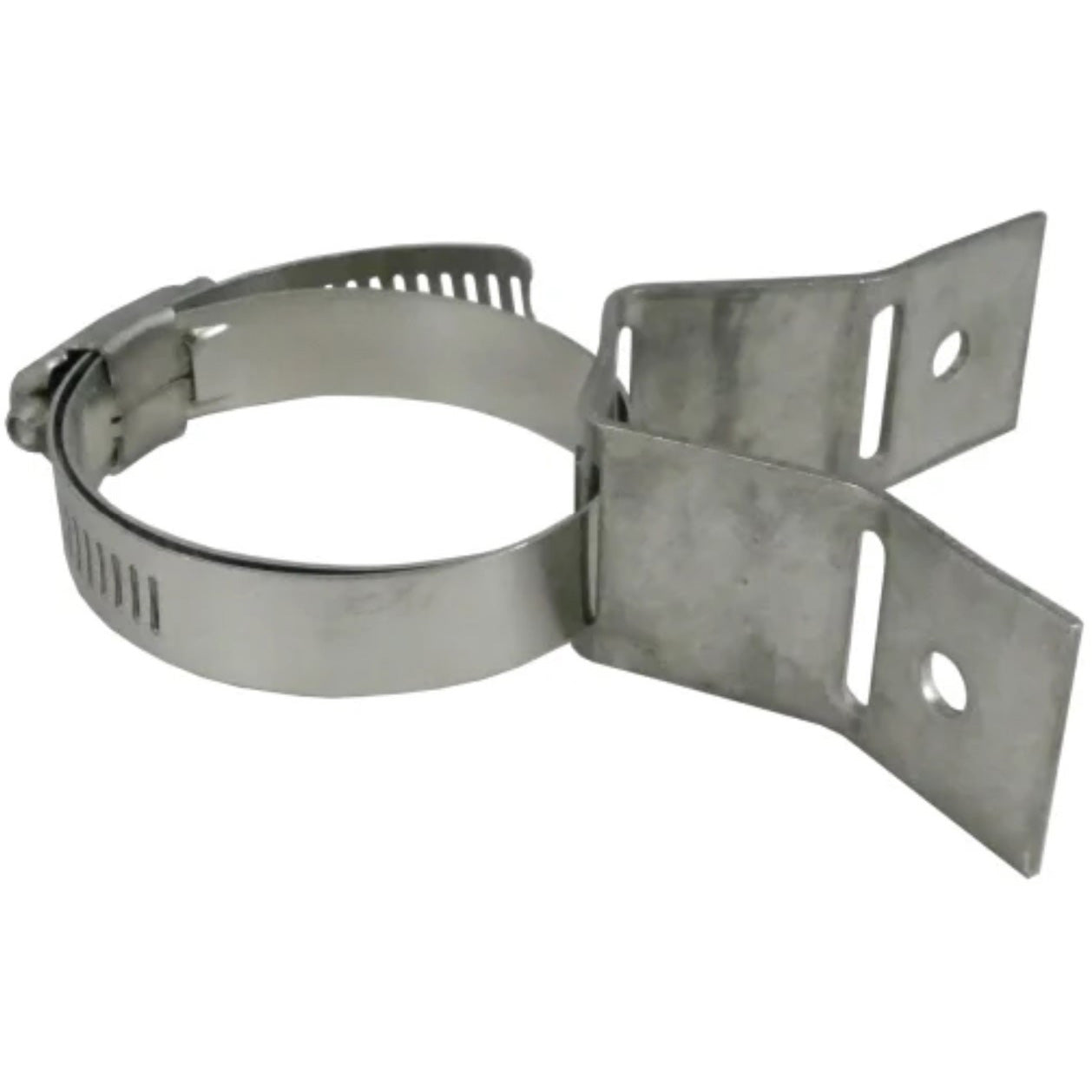

- Non-magnetic stainless steel mounting bracket; allows for direct mounting on bulkhead or submersible pumps
- Power-on indicator light on top
- Test feature (optional)
- Ignition protected
- No mercury
- U.L. listed
- Positive acting-no timer delays-no electonics
- Highest quality construction
- Impervious to all materials commonly found in bilges
- Switch components completely sealed against moisture

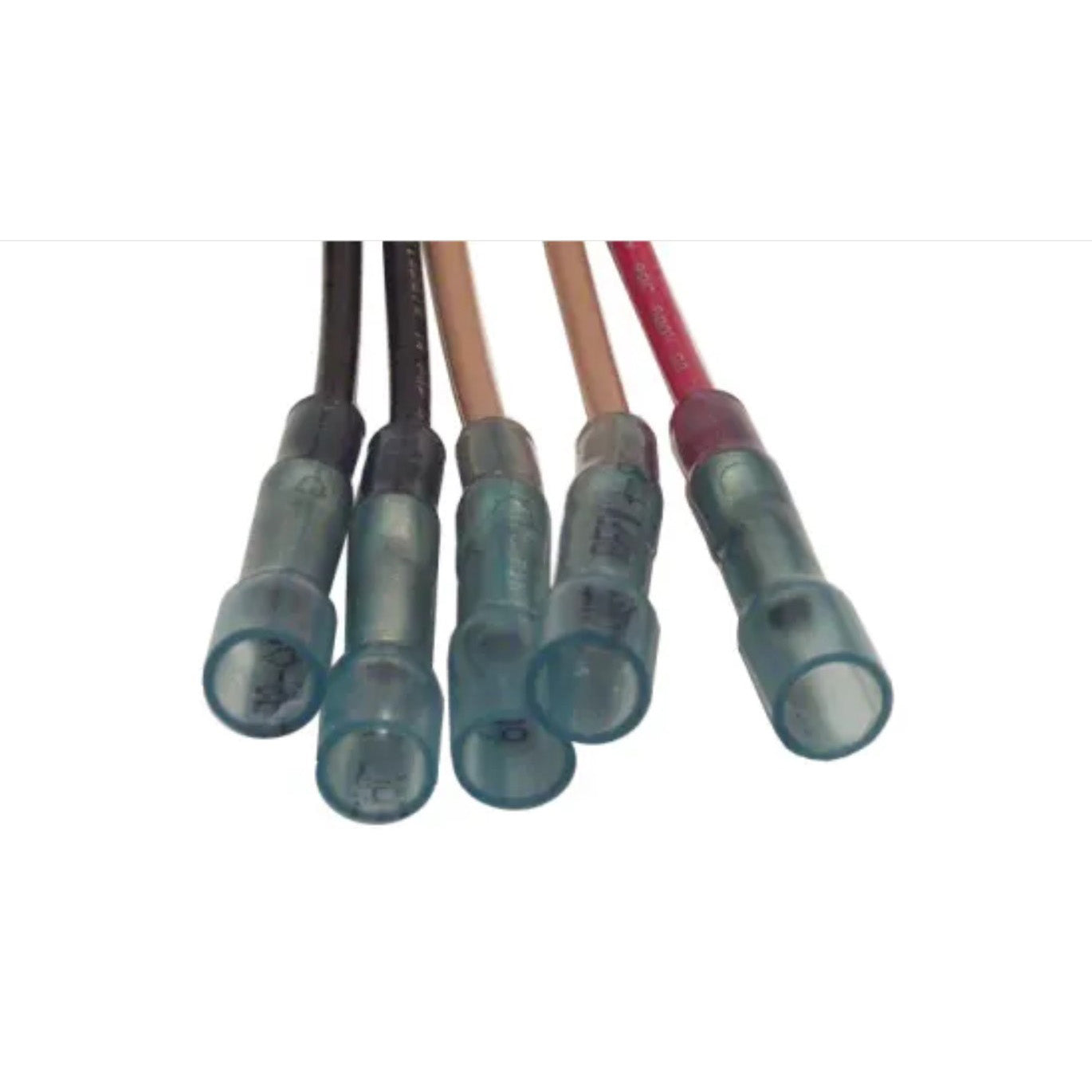

- Extra long wire leads with sealed adhesive wall heat shrink butt-splice wire connectors pre-installed
- Wiring instructions permanently stamped on switch
- Sensor Tube: Non-magnetic stainless steel
- Case Tubing: Buterate (highly resistant to impact fuel, oil, and salt water)
- Float: Buna-N
- Exceeds U.S. Coast Guard Standards
- For Pumps Drawing Up to 15A
- Automatic Bilge Pump Switching
- Non-Mercury Design
