Description

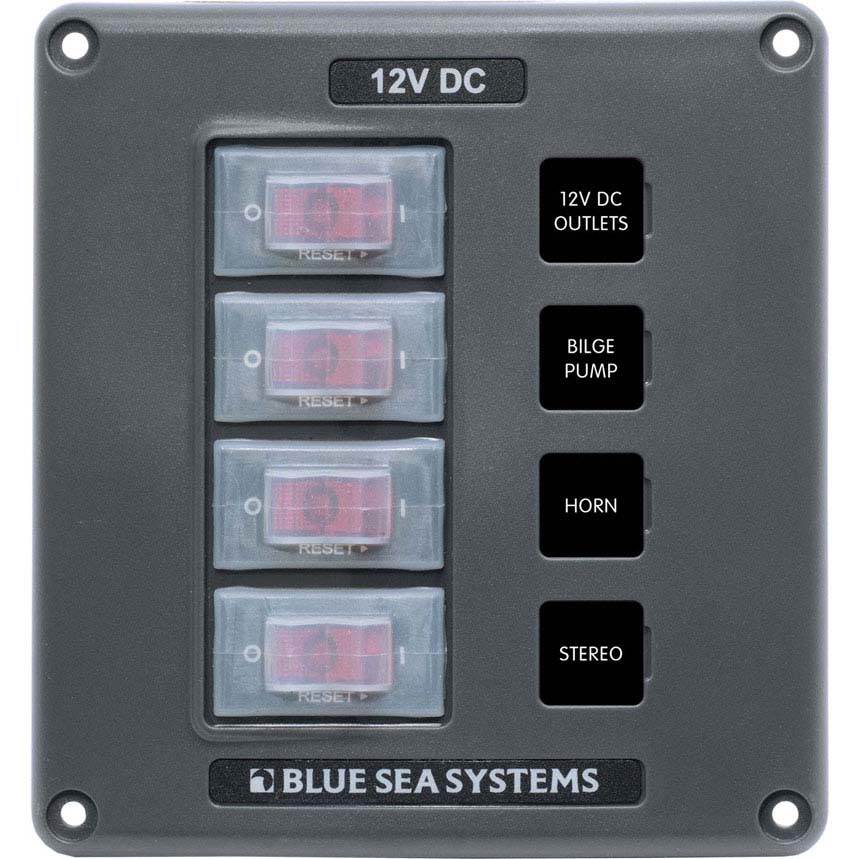

- Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
- Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Silicon breaker boots and gasket protects against water ingress
- Low profle makes it easy to install in tight spaces
- Fast-on circuit breaker connectors make it quick to wire

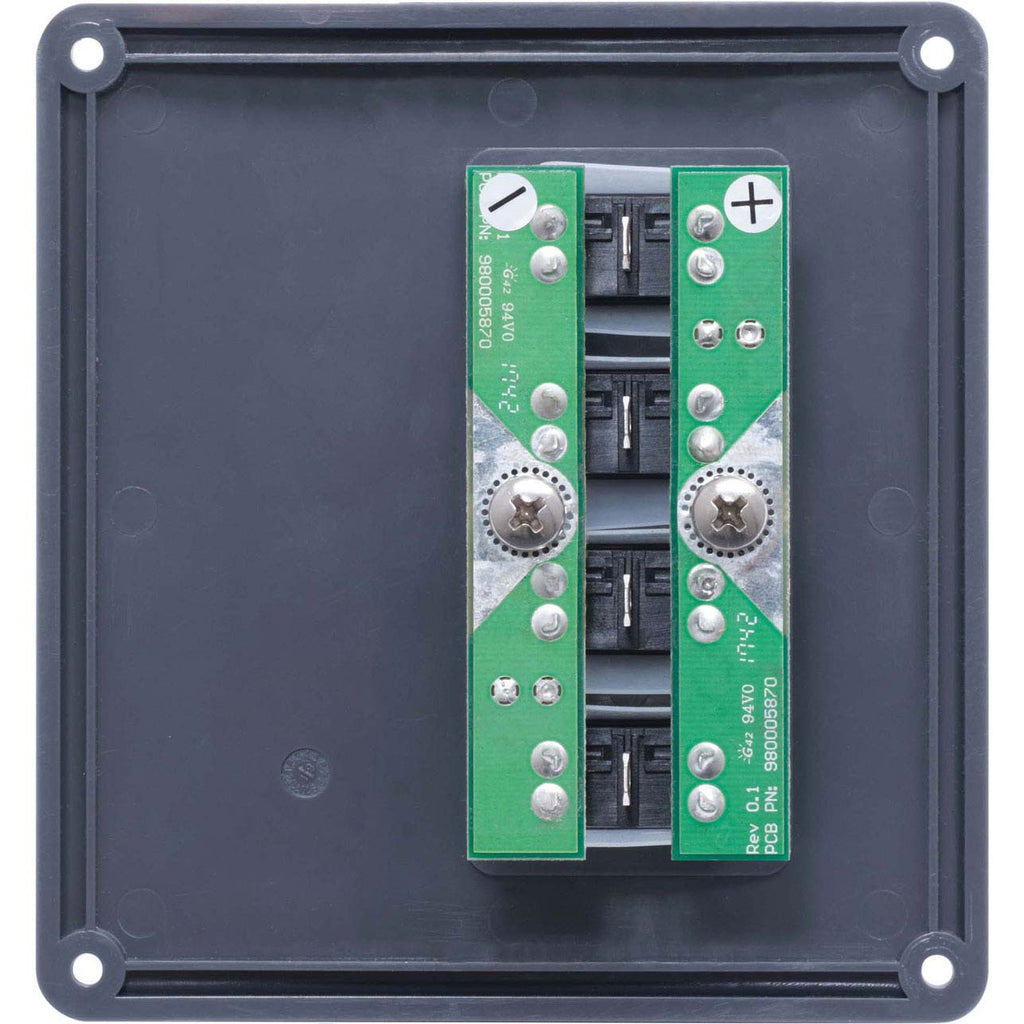

- Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
| Specifications | |
|---|---|
| Color | 4.625 Gray |
| Positions | 4 |
| Nominal Voltage | 12V DC |
| Maximum Amperage | 45A |
| Terminal Type | 1/4" Male quick connect |
| Hardware | Stainless Steel #6 x 5/8" mounting screws |
| Ring Terminal Size | M5 (#10) |
| Height | 5.0in (127 mm) |
| Depth | 1.75in (44.45 mm) |
