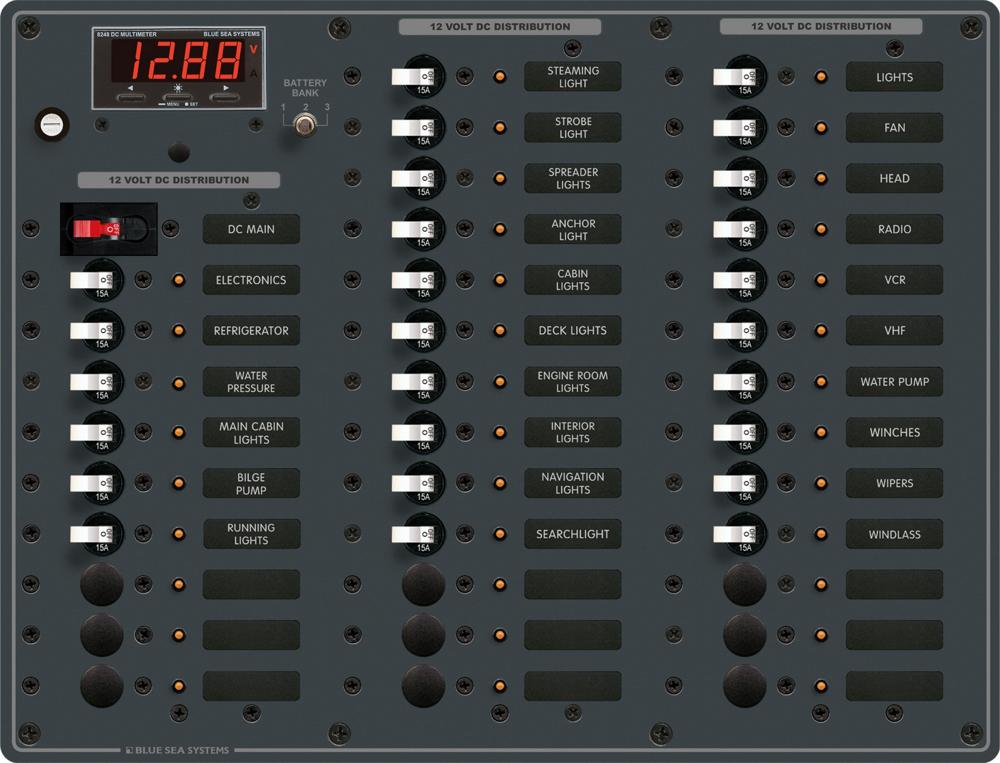

Description
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
| Specifications | |
|---|---|
| Positions | 35 |
| Nominal Voltage | 12V DC 24V DC |
| Maximum Amperage | 100A |
| Height | 11.25in (285.75 mm) |
| Width | 14.75in (374.65 mm) |
| Depth | 4.00in (101.6 mm) |
| Weight | 10.80lb (4.9 kg) |
| Weight | 10.80lb (4.9 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 8030 | Basic DC Panel Label Set - 30 Labels [LABEL] |
| 1 | 8248 | DC Digital Multi-Function Meter with Alarm |
| 26 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch) |
| 1 | 7250I | Circuit Breaker CA1 100A Red IP (Main) |
