DESCRIPTION

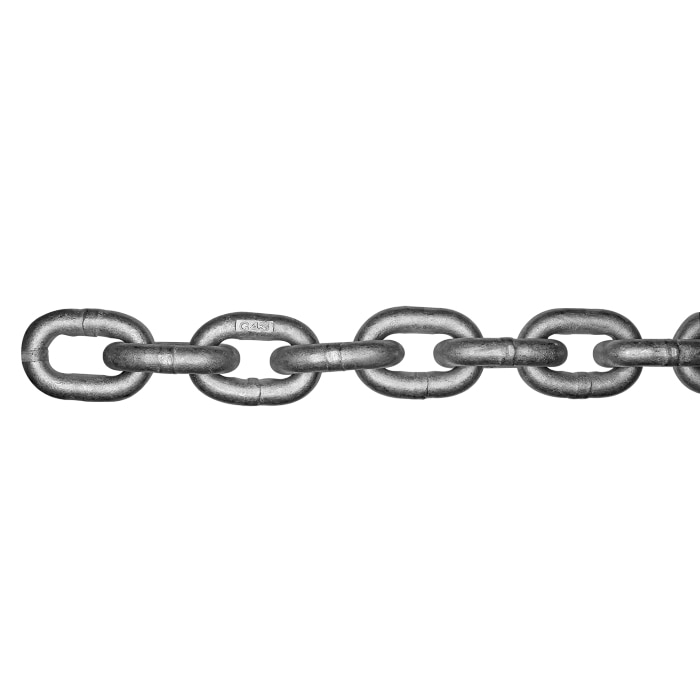

ISO High Test Chain uses high tensile strength carbon steel that provides a greater strength-to-weight ratio than proof coil chain. ISO short pitch link which makes it more flexible and ideally suited as a windlass chain. Each link is proof tested and calibrated.
NOT for overhead lifting.
- Finish: Hot Dip Galvanized.
- Check manufacturer's specification prior to purchase.
- Country of origin may vary.
NOT for overhead lifting.
| TRADE SIZE in | WIRE DIAMETER | INSIDE DIMENSIONS | WORKING LOAD LIMIT (WLL/SWL) | BREAKING LOAD LIMIT (BLL/MBL) | ||||||||
| mm | in | LENGTH | WIDTH | kg | kn | lb | kg | kn | lb | |||
| mm | in | mm | in | |||||||||
| 1/4 | 7 | 0.27 | 21.3 | 0.84 | 10.41 | 0.41 | 1180 | 11.5 | 2600 | 3540 | 34.6 | 7800 |
| 5/16 | 8.7 | 0.32 | 26.2 | 1.03 | 12.95 | 0.51 | 1770 | 17.3 | 3900 | 5310 | 52.0 | 11700 |
| 3/8 | 10 | 0.39 | 31 | 1.22 | 15 | 0.59 | 2450 | 24.0 | 5400 | 7350 | 72.0 | 16200 |
| 7/16 | 11.8 | 0.46 | 35.6 | 1.4 | 16.5 | 0.65 | 3270 | 32.0 | 7200 | 9810 | 96.0 | 21600 |
| 1/2 | 13 | 0.51 | 40.34 | 1.59 | 19.3 | 0.76 | 4170 | 40.9 | 9200 | 12510 | 122.6 | 27600 |
