Barr, Rubber Front Engine Mount 350 lbs, 5/8" Stud

$63.87 On Sale

Front Engine Mount 550 5/8 in. Stud
SKU: 221792
|
Mfg# 8-0002
|
LFS# BAR80002
|
UNIT: Each
In Stock - Ships out in 1 Business Day

Barr, Rubber Front Engine Mount 350 lbs, 5/8" Stud.

  • Rubber engine mount; double
  • Increased capacity for diesel and extra heavy-duty applications
  • Rubber cushions are locked to the base, not vulcanized and can be replaced
  • Mount is vertically adjustable to facilitate engine alignment
  • Each mount has a capacity of 350 lbs

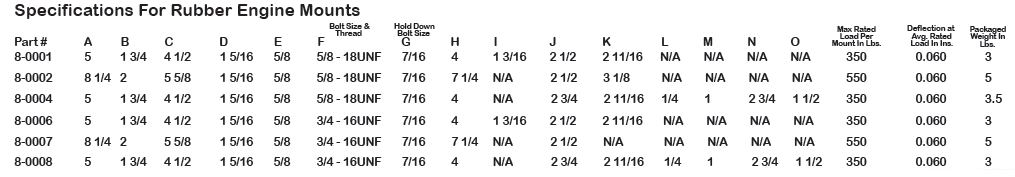

Specifications:
  • A: 8-1/4
  • B: 2
  • C: 5-5/8
  • D: 1-5/16
  • E: 5/8
  • F Bolt size & Thread: 5/8 - 18UNF
  • G Hold Down Bolt Size: 7//16
  • H: 7-1/4
  • I: N/A
  • J: 2-1/2
  • K: 3-1/8
  • L: N/A
  • M: N/A
  • N: N/A
  • O: N/A
  • Deflection at Avg. Rated load in Inches:.06
