Blue Sea Systems, e-Series Battery Selector Switches

Mfr: Blue Sea Systems
$74.99

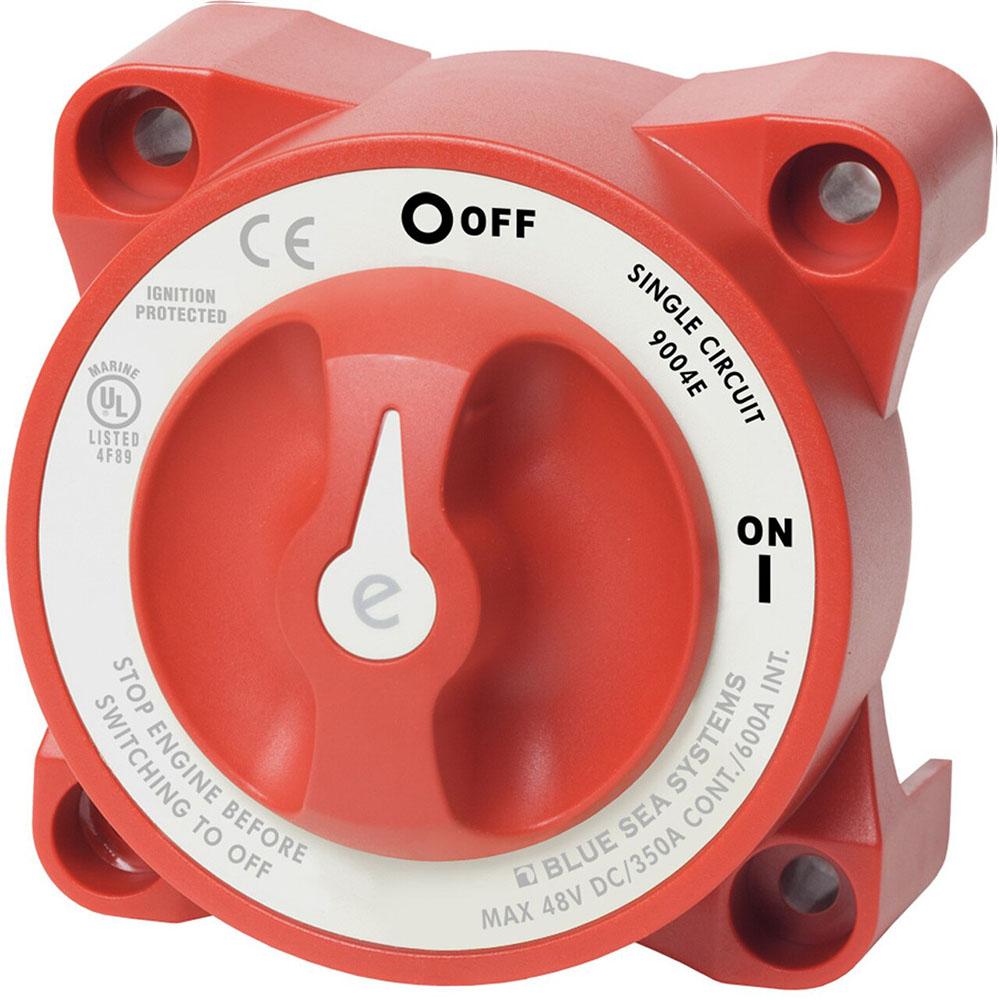

Blue Sea, 9004e, e-Series, On Off, Battery Switch, with AFD
SKU: 94000
|
Mfg# 9004e
|
LFS# BSS9004E
|
UNIT: Each
Description: Single Circuit On-OffBattery Combine: NoAlternator Field Disconnect: Yes
In-stock, 1-2 days to leave warehouse

Blue Sea Systems, e-Series Battery Selector Switches. 350 Amps continuous rating for inboard gasoline or diesel engines.

  • Some models include AFD (Alternator Field Disconnect)
  • Ignition protected-safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches

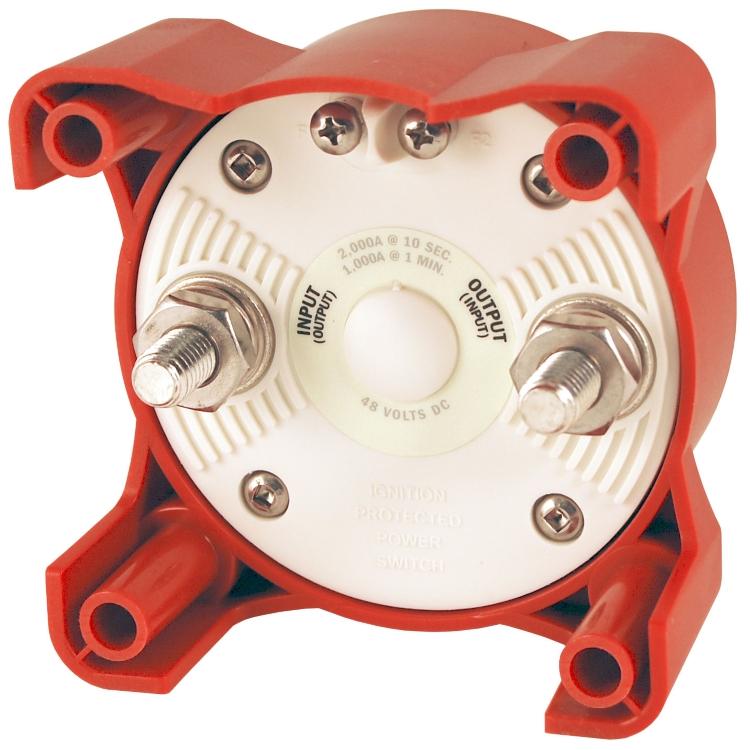

  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
  • 7/8" (22.22mm) stud length to accept multiple cable terminals
  • Tactile textures indicate knob position by feel only
Specifications
Cranking Rating: 10 sec.: 2,000 Amps
Cranking Rating: 1 min.: 1,000 Amps
Intermittent Rating: 5 min.: 600 Amps
Continuous Rating: 350 Amps
Maximum Voltage Rating: 48 Volts DC
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 140 in-lb (15.82 N‡m) max.
Mounting Holes: Accept 1/4" (M6) Screw
Cable Size to Meet Ratings: 4/0 AWG (120mm_)
Cable Clearance For 4/0 AWG Cables: 1.10" (27.9mm)
Weight Lb (Kg): 0.95 (0.43)

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information, go to www.P65Warnings.ca.gov.
