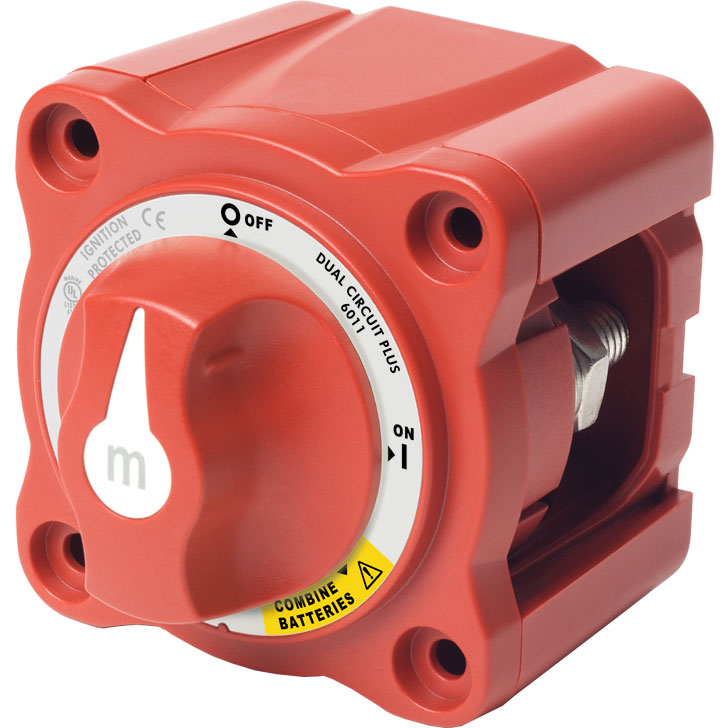

Blue Sea Systems, m-Series Mini Battery Switch, Dual Circuit Plus, 6011

Mfr: Blue Sea Systems
$39.60 On Sale
Blue Sea Systems, m-Series Mini Battery Switch, Dual Circuit Plus, 6011, Red
SKU: 203716
|
Mfg# 6011
|
LFS# BSS6011
|
UNIT: Each
In Stock - Ships out in 1 Business Day

Blue Sea Systems, m-Series Mini Battery Switch, Dual Circuit Plus, 6011.

  • Simultaneously switches two isolated battery banks or combines battery banks to all loads
  • 300 Amps continuous rating for outboards and small gasoline or diesel engines
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22 mm) stud length accepts multiple cable terminals
  • One-piece terminal stud design never loosens over time
  • Isolating cover with three snap-in side pieces protects rear contactsand allows wire access in any direction
  • Case design allows surface, rear, or front panel mounting options
  • 6 Icon label set included for circuit identification
  • Cranking Rating: 10 sec. - 1,000A per circuit
  • Cranking Rating: 1 min. - 650A
  • Intermittent Rating: 5 min. - 450A
  • Continuous Rating: 300A
  • Voltage Maximum Operating: 32V DC
