Blue Seas HD-Series Heavy Duty Selector Battery Switch

Mfr: Blue Sea Systems
$75.55 to $100.95
$75.55 to $100.95
Switches isolated battery banks to all loads or combines battery banks to all loads
  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables
Item #
MPN
Switch Type
Color
Switch Positions
Max. Volt
Terminal Stud Torque
Continuous Rating
Intermittet Rating
Cranking Rating 30 sec
Blue Seas HD-Series Heavy Duty Selector Battery Switch
Item # : 543663-500 Amps-Alternator Field Disconnect
MPN : 3003
Switch Type : Selector 4 Position
Color : Grey
Switch Positions : 4
Max. Volt : 32V DC
Terminal Stud Torque : 220 in-lb (24.86 Nm)
Continuous Rating : 500A
Intermittet Rating : 700A (5 min)
Cranking Rating 30 sec : 1600A
Blue Seas HD-Series Heavy Duty Selector Battery Switch
Item # : 543663-600 Amps-Alternator Field Disconnect
MPN : 3001
Switch Type : Single Circuit ON-OFF
Color : Grey
Switch Positions : 2
Max. Volt : 32V DC
Terminal Stud Torque : 220 in-lb (24.86 Nm)
Continuous Rating : 600A
Intermittet Rating : 900A (5 min)
Cranking Rating 30 sec : 1750A

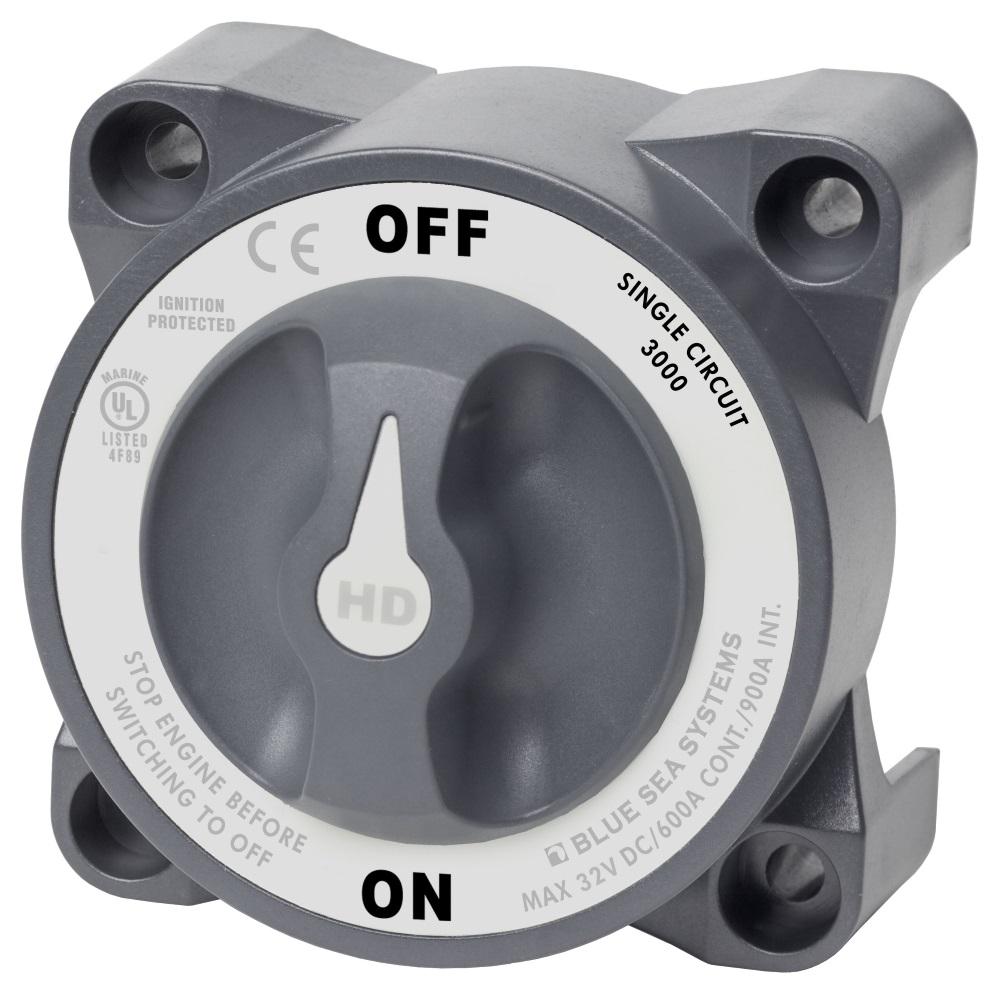

Blue Seas HD-Series Heavy Duty Selector Battery Switch
Item # : 543663-600 Amps-No Alternator Field Disconnect
MPN : 3000
Switch Type : Single Circuit ON-OFF
Color : Grey
Switch Positions : 2
Max. Volt : 32V DC
Terminal Stud Torque : 220 in-lb (24.86 Nm)
Continuous Rating : 600A
Intermittet Rating : 900A (5 min)
Cranking Rating 30 sec : 1750A
Blue Seas HD-Series Heavy Duty Selector Battery Switch
Item # : 543663-500 Amps-No Alternator Field Disconnect
MPN : 3002
Switch Type : Selector 4 Position
Color : Grey
Switch Positions : 4
Max. Volt : 32V DC
Terminal Stud Torque : 220 in-lb (24.86 Nm)
Continuous Rating : 500A
Intermittet Rating : 700A (5 min)
Cranking Rating 30 sec : 1600A
