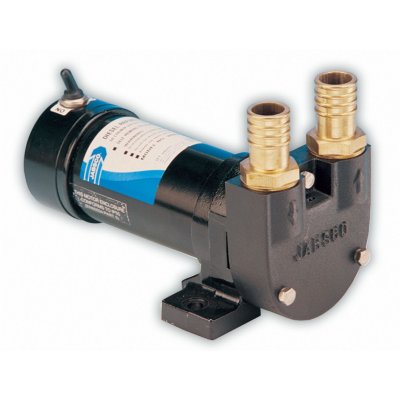

Jabsco, VR050 Series, Diesel Refuelling, Fuel Transfer Pump, Continuously Rated, 13 gpm

Jabsco, VR050 Series, Diesel Refueling, Fuel Transfer Pump, Continuously Rated, 13 gpm. For fuel transfer duties requiring a pump that runs for any duration fuel transfer without overheating.

• Flow rate: 13 gpm (50 Liters/min)
• Self-priming from dry up to 7.8' (2.4m)
• High head capability - 32' (10 meters)
• Self priming up to 9.6' (3 meters)
• Continuously rated
• Vibration tested
• IP55 protected motor
• 24 volt version with thermal cut-out protection
• Full range of installation accessories
• Body: Cast Iron
• Rotor: Sintered Iron
• Vanes: Sintered Bronze
• Seal: Nitrile Lip Seal
• Shaft: Steel
• Port Type: 3/4" BSP or 1" (25mm) hose adaptors
• Voltage: 12 or 24 volt
• Motor: Permanent magnet, corrosion resistant IP55 protected
• Temperature Range: -22 Deg. to +104 Deg. F (-30 Deg. to +40 Deg. C)
• Duty: Continuously rated up to 10' (3 meters), total head of diesel fuel at 104 Deg. F (40 Deg. C)

ISO8846 Marine (Ignition Protection)

Designed for refuelling medium sizes diesel powered vehicles [typical tank sizes 200 - 500 litres (50 - 200 gallons)] from drums.

Suitable for mounting to the following equipment: Excavators, Cranes, Road rollers (compactors), Pavers, Agricultural machines, Generators, Helicopters.

Suitable for diesel fuel, Kerosene, Paraffin, Hydraulic oils, Oils up to 150 centi Stokes (750 Saybolt Universal) viscosity. Jabsco (PDF)
