Jabsco, Water Pressure System Pump, Automatic, Multi-Outlet, 36800 Series

Mfr: Jabsco
$488.69 to $529.78
$488.69 to $529.78

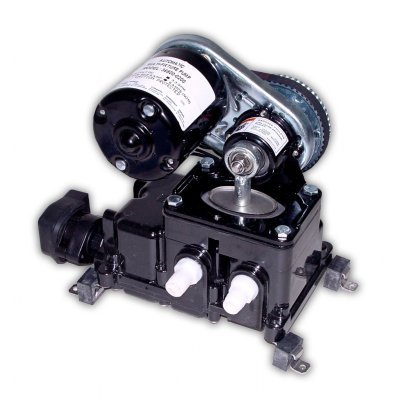

Jabsco, Fresh Water System Pump, Automatic, Multi-Outlet, 36800 Series.

  • Flow rate: Nominal 3.3 gpm (12.5 Litres/min)
  • Self-priming from dry up to 4.9' (1.5m)
  • Diaphragm design allows dry running
  • Built-in discharge check valve
  • Quiet operation
  • Built-in hydraulic pulsation dampener
  • Large vibration absorbing pads
  • Ports available with barb, threads or flare
  • Body: Plastic
  • Port Type: 1/2" or 5/8" ID Hose barb
  • Voltage: 12 or 24 volt
  • Weight: 11 lb (5.0kg)

  • Meets USCG Regulation 183.410
  • ISO 8846 MARINE for Ignition Protection
  • Jabsco automatic water system pumps are designed for self contained recreational vehicles and pleasure boats with multiple-outlet water systems. The systems are automatic -when a faucet is opened, the pump instantly begins operation to provide a constant flow from tank to faucet. Closing the faucet automatically discontinues pump operation.Jabsco(PDF)
    Item #
    MPN
    Flow Rate
    Voltage
    Hose / Pipe Size
    Current
    Jabsco, Fresh Water System Pump, Automatic, Multi-Outlet, 36800-1000
    Item # : 531882-12Volt
    MPN : 36800-1000
    Flow Rate : 3.3 gpm
    Voltage : 12 volt
    Hose / Pipe Size : 1/2" ID, 5/8" ID
    Current : 6 amp
    Jabsco, Automatic Water System Pump, 32800 Series, 24 volt
    Item # : 531882-24Volt
    MPN : 36800-1010
    Flow Rate : 3.3 gpm
    Voltage : 24 volt
    Hose / Pipe Size : 1/2" ID, 5/8" ID
    Current : 4 amp
