DESCRIPTION

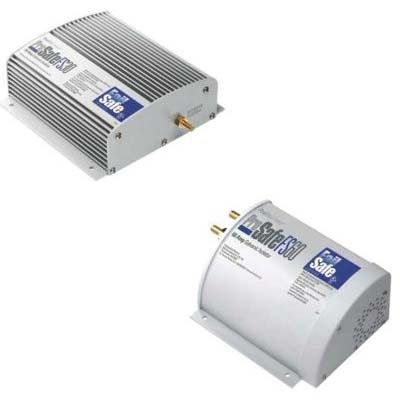

Professional Mariner, FailSafe Galvanic Isolator. Galvanic isolators solve a common cause of corrosion by interrupting galvanic circuits with other boats and the dock when your boat is plugged into a shore power system. These isolators prevent stray DC corrosion-producing currents from passing through the AC green wire, all while maintaining AC ground safety and protecting against zinc loss. ProSafe FS installs easily and does not require a dedicated monitor to verify the operational status of the galvanic isolator as do other, non-FailSafe Certified galvanic isolators. The ProSafe FS 30 & 60 galvanic isolators are built using robust FlatPack High Power Semiconductor Platforms, thus ensuring that in the event of a failure, onboard AC ground continuity is not compromised.
- Fail Safe certified; ABYC A-28 July 08 compliant; Underwriters Laboratories (UL) certified
- Ignition protected
- Can be mounted within an engine compartment
- Corrosion-proof gold-plated terminals
- Robust high power diodes allow the FS Series to meet the new FailSafe criteria for conducting inrush currents of 3,000 amps (FS 30) and 5,000 amps (FS 60)
- The FS 60 contains a fan for self-cooling should it have to conduct current in the event of failure
- Maximum Temperature: 50 Deg. C
- Volts: 120/240 VAC
SPECS
Item #
MPN
Amps
Weight
Size
Shore Cord Inlet Compatibility
Professional Mariner, FailSafe 30A Galvanic Isolator
Item #:531215-30AMPS
MPN:22034
Amps: 30A
Weight: 3 lb
Size: 6-3/4"L x 7"W x 2-1/2"H
Shore Cord Inlet Compatibility: Single 15, 16, 20 or 30
Professional Mariner, FailSafe 60A Galvanic Isolator
Item #:531215-60AMPS
MPN:22074
Amps: 60A
Weight: 3.7 lb
Size: 7-1/4"L x 6-1/2"W x 3-3/4"H
Shore Cord Inlet Compatibility: Single 50 or Dual 15's, 16's, 20's or 30's
