Sandvik Hose Clamps, GSB Trunnion, 316 Stainless Steel

Mfr: Scandvik
$9.49 to $31.79
QuantityPrice
0 No Reviews yet
Back
$9.49 to $31.79
QuantityPrice

DESCRIPTION

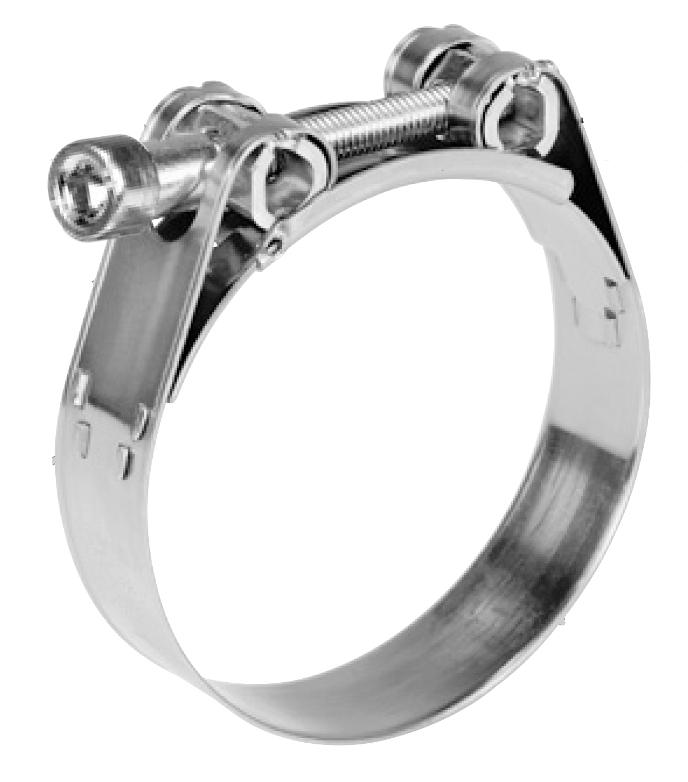

Sandvik Trunnion Hose Clamps are heavy duty, low profile T-bolt style clamps particularly suited for boat use in sealing exhaust, pressure or suction lines with plastic or steel inserts. These stainless steel trunnion hose clamps offer high shore hardness values and distinguish themselves from other clamps with extremely high band tensile force. Sandvik Trunnion Hose Clamps are easily installed by means of manual, pneumatic or electric tools.

  • Designed to protect your hoses from hose clamp damage
  • Band, screw & housing all made of high grade stainless steel (1.4401/AISI 316)
  • Hollow trunnions
  • 3 band widths (based on diameter range)
  • Recommended tightening torque:
    • 18mm band = 8 Nm
    • 25mm band = 20 Nm
    • 30mm band = 25 Nm
  • Fracture torque:
    • 18mm band = 15 Nm
    • 25mm band = 30 Nm
    • 30mm band = 45 Nm

SPECS

Item #
MPN
Clamp Range
Band Width
GSB Trunnion Hose Clamp, Stainless Steel, 1-1/8" to 1-1/4" Hose
Item #:533789-1-1/8"_1-1/4"
MPN:67006
Clamp Range: 1-1/8" to 1-1/4" (29-31mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 1-1/4" to 1-5/16" Hose
Item #:533789-1-1/4"_1-5/16"
MPN:67007
Clamp Range: 1-1/4" to 1-5/16" (31-34mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 1-1/16" to 1-1/8" Hose
Item #:533789-1-1/16"_1-1/8"
MPN:67005
Clamp Range: 1-1/16" to 1-1/8" (27-29mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 2-11/16" to 2-7/8" Hose
Item #:533789-2-11/16"_2-7/8"
MPN:67017
Clamp Range: 2-11/16" to 2-7/8" (68-73 mm)
Band Width: 1" (25mm)
GSB Trunnion Hose Clamp, Stainless Steel, 2-1/2" to 2-11/16" Hose
Item #:533789-2-1/2"_2-11/16"
MPN:67016
Clamp Range: 2-1/2" to 2 -1/16" (63-68mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 1" to 1-1/16" Hose
Item #:533789-1"_1-1/16"
MPN:67004
Clamp Range: 1" to 1-1/16" (25-27mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 1-9/16" to 1-11/16" Hose
Item #:533789-1-9/16"_1-1/16"
MPN:67010
Clamp Range: 1-9/16" to 1 -1/16" (40-43mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 1-7/8" to 2" Hose
Item #:533789-1-7/8"_2"
MPN:67012
Clamp Range: 1-7/8" to 2" (47-51mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 1-7/16" to 1-9/16" Hose
Item #:533789-1-7/16"_1-9/16"
MPN:67009
Clamp Range: 1-7/16" to 1-9/16" (37-40mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 1-5/16" to 1-7/16" Hose
Item #:533789-1-5/16"_1-7/16"
MPN:67008
Clamp Range: 1-5/16" to 1-7/16" (34-37mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 1-11/16" to 1-7/8" Hose
Item #:533789-1-11/16"_1-7/8"
MPN:67011
Clamp Range: 1-11/16" to 1-7/8" (43-47mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 3-9/16" to 3-13/16" Hose
Item #:533789-3-9/16"_3-13/16"
MPN:67021
Clamp Range: 3-9/16" to 3-13/16" (91-97mm)
Band Width: 1" (25mm)
GSB Trunnion Hose Clamp, Stainless Steel, 3-3/8" to 3-9/16" Hose
Item #:533789-3-3/8"_3-9/16"
MPN:67020
Clamp Range: 3-3/8" to 3-9/16" (85-91mm)
Band Width: 1" (25mm)
GSB Trunnion Hose Clamp, Stainless Steel, 3-3/16" to 4-1/8" Hose
Item #:533789-3-13/16"_4-1/8"
MPN:67022
Clamp Range: 3-13/16" to 4-1/8" (97-104mm)
Band Width: 1" (25mm)
GSB Trunnion Hose Clamp, Stainless Steel, 3-1/8" to 3-3/8" Hose
Item #:533789-3-1/8"_3-3/8"
MPN:67019
Clamp Range: 3-1/8" to 3-3/8" (79-85mm)
Band Width: 1" (25mm)
GSB Trunnion Hose Clamp, Stainless Steel, 2" to 2-3/16" Hose
Item #:533789-2"_2-3/16"
MPN:67013
Clamp Range: 2" to 2-3/16" (51-55mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 2-7/8" to 3-1/8" Hose
Item #:533789-2-7/8"_3-1/8"
MPN:67018
Clamp Range: 2-7/8" to 3-1/8" (73-79mm)
Band Width: 1" (25mm)
GSB Trunnion Hose Clamp, Stainless Steel, 2-5/16" to 2-1/2" Hose
Item #:533789-2-5/16"_2-1/2"
MPN:67015
Clamp Range: 2-5/16" to 2-1/2" (59-63mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 2-3/16" to 2-5/16" Hose
Item #:533789-2-3/16"_2-5/16"
MPN:67014
Clamp Range: 2-3/16" to 2-5/16" (55-59mm)
Band Width: 11/16" (18mm)
GSB Trunnion Hose Clamp, Stainless Steel, 5-7/8" to 6-3/8" Hose
Item #:533789-5-7/8"_6-3/8"
MPN:67028
Clamp Range: 5-7/8" to 6-3/8" (150-162 mm)
Band Width: 1-3/16" (30mm)
GSB Trunnion Hose Clamp, Stainless Steel, 5-1/8" to 5-1/2" Hose
Item #:533789-5-1/8"_5-1/2"
MPN:67026
Clamp Range: 5-1/8" to 5-1/2" (130-140mm)
Band Width: 1" (25mm)
GSB Trunnion Hose Clamp, Stainless Steel, 5-1/2" to 5-7/8" Hose
Item #:533789-5-1/2"_5-7/8"
MPN:67027
Clamp Range: 5-1/2" to 5-7/8" (140-150mm)
Band Width: 1" (25mm)
GSB Trunnion Hose Clamp, Stainless Steel, 4-7/16 to 4-3/4" Hose
Item #:533789-4-7/16"_4-3/4"
MPN:67024
Clamp Range: 4-7/16" to 4-3/4" (112-121mm)
Band Width: 1" (25mm)
GSB Trunnion Hose Clamp, Stainless Steel, 4-3/4" to 5-1/8" Hose
Item #:533789-4-3/4"_5-1/8"
MPN:67025
Clamp Range: 4-3/4" to 5-1/8" (121-130mm)
Band Width: 1" (25mm)
GSB Trunnion Hose Clamp, Stainless Steel, 4-1/8" to 4-7/16" Hose
Item #:533789-4-1/8"_4-7/16"
MPN:67023
Clamp Range: 4-1/8" to 4-7/16" (104-112mm)
Band Width: 1" (25mm)
