Shakespeare, Antenna / Radio Tester TX & RX

Shakespeare, Antenna / Radio Tester TX & RX
SKU: 238549
|
Mfg# ART3
|
LFS# SHKART3
|
UNIT: Each
Contact us for availability

DESCRIPTION

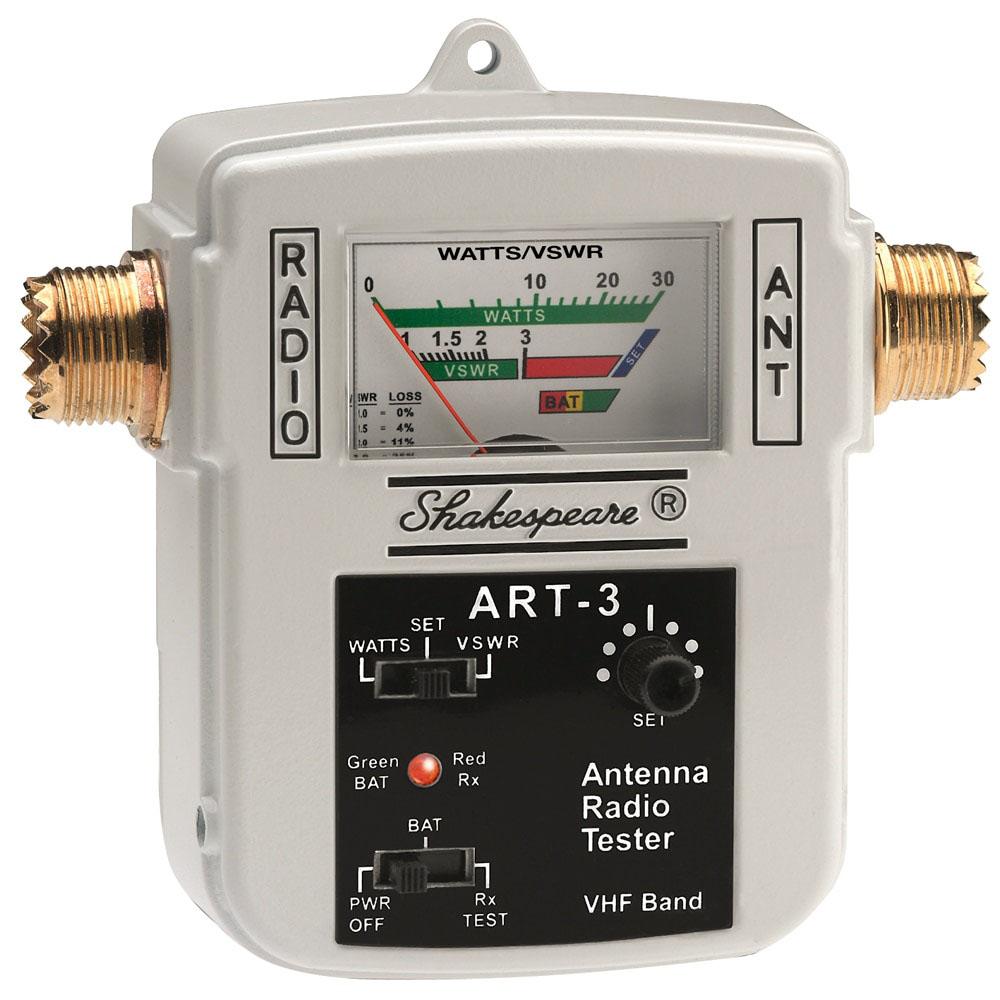

Shakespeare, Antenna / Radio Tester TX & RX. No need to call for a radio check when you have this compact, easy to use, unit on-board. Unlike other meters in its class, Shakespeare's ART-3 Antenna / Radio Tester tests receiver function as well as output power and VSWR (antenna efficiency). The tester is powered by an internal battery or can be connected to ships 12 VDC with the supplied power cable, and battery level can be checked at the flip of a switch. No serious boater should be without an ART-3.

  • Frequency Range: 155-158 MHz
  • RF Power Scale: 0 to 30 watts
  • Impedance: 50 ohms
  • Accuracy: +/-10%
  • Connectors: SO-239
  • Signal Generator: 3 KHz Deviation
  • Tone: 1000 Hz
  • RF Level: -115 dBM (approx.)
  • Die-cast aluminum construction
  • Shakespeare Style 4079 one-meter cable available (sold separately) to connect the ART-2 or ART-3 to your VHF Radio, or for the Style CS-2 Switch. It has PL-259 connectors on each end, already installed.
Instruction Sheet
