DESCRIPTION

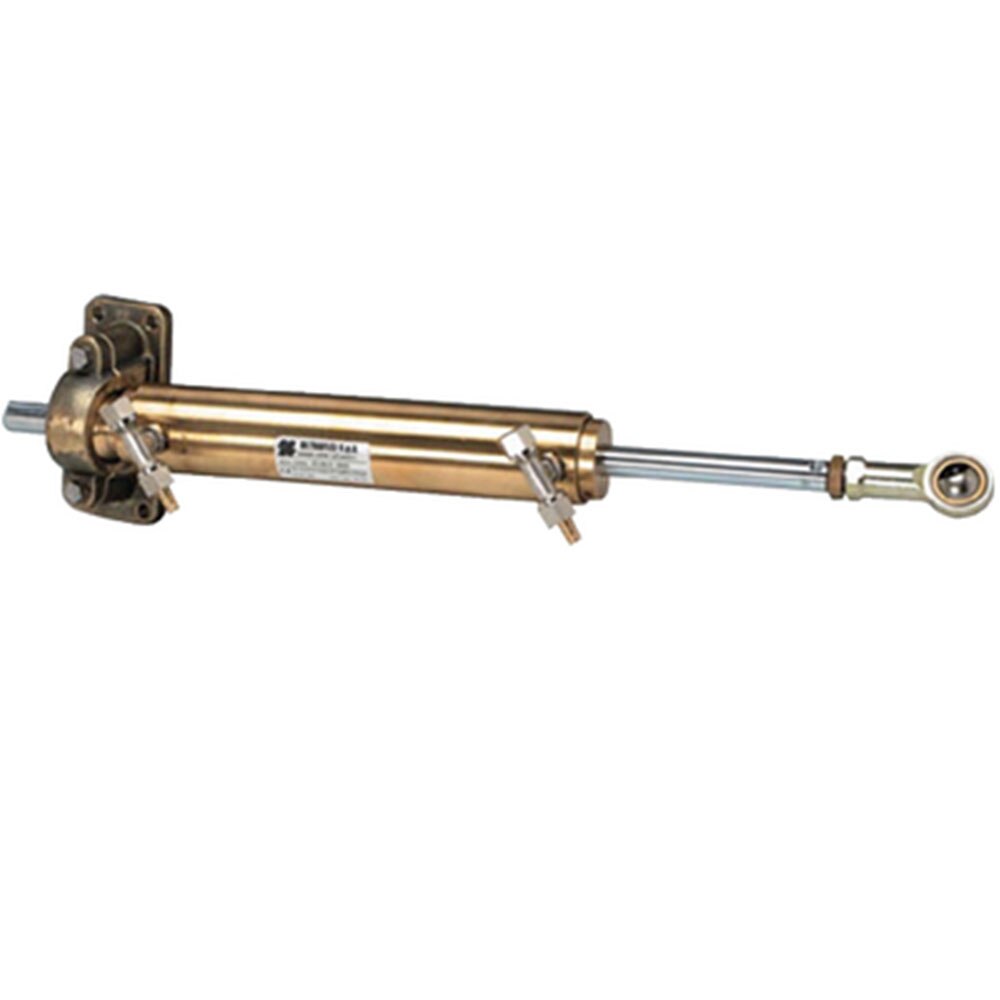

Inboard hydraulic steering cylinder works with Uflex marine hydraulic steering helms to provide smooth, fatigue-free steering.
Uflex Brass Hydraulic Steering Cylinders. UC293-1 Cross Reference to Hynautics HC5314.
- Inboard Cylinder
- Balanced cylinder; the number of turns lock-to-lock is equal port to starboard
- Volume 293 CC 17.8 cu. inch
- Output force 2545 lbs.
- Torque 12816 lbs.
- Inside diameter 1.97 in.
- Stroke 7 in.
- 3/8 in. fittings for high pressure flex hose
