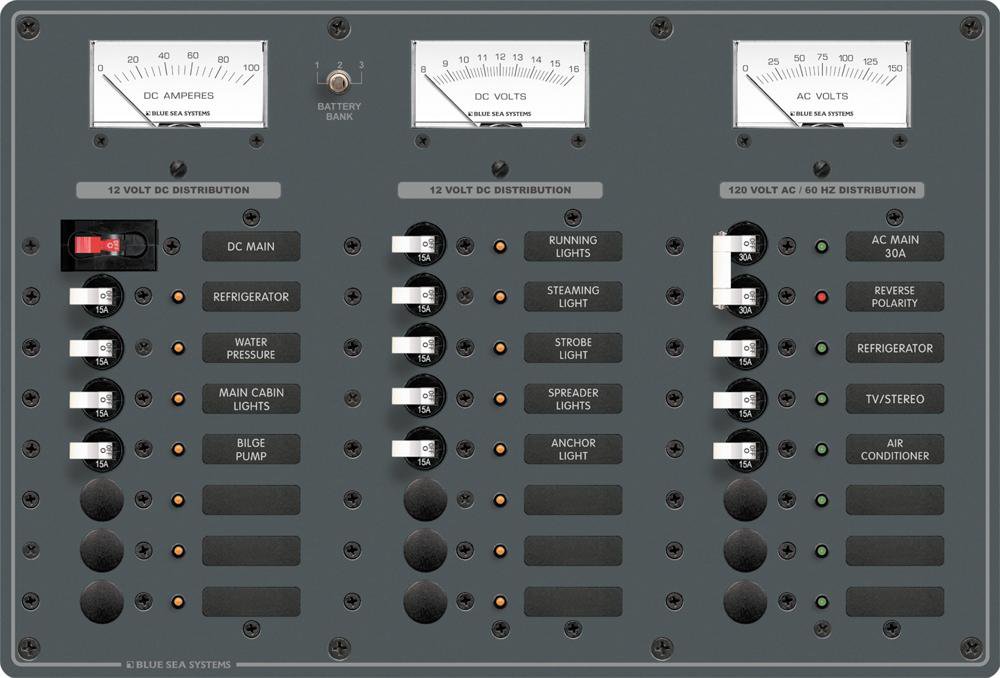

AC / DC Panel, 120 Volt Main + 6 Positions / 12 Volt Main + 15 Positions, Analog Meters
- All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
- Maximum panel amperage - 100 Amperes DC, 50 Amperes AC
- MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish, heavy 1/8" aluminum 5052 alloy
- Detailed installation instructions and cutout template included, countersunk mounting holes throughout
- Includes set of 60 common AC and DC Large Format Labels
DC Positions: DC Main + 15 Positions
Dimensions: 10.0" (254.00 mm) Height x 14.75" (374.65 mm)
AC Volts: 120 Volts AC
Installed AC Circuit Breakers: 1 (30A), 3 (15A)
DC Volts: 12 Volts DC
Installed DC Circuit Breakers: 1 (100A Main), 9 (15A)
Blue sea 8084(PDF)
