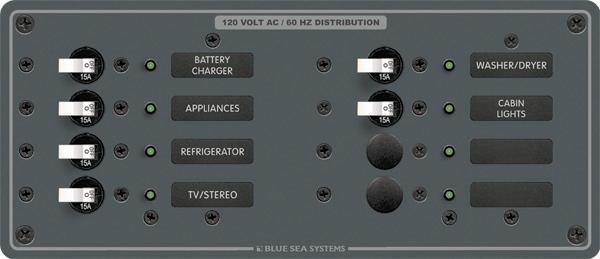

AC Distribution Panel, 120 Volt, 8 Positions, No Meter


AC Distribution Panel, 120 Volt, 8 Positions, No Meter
SKU: 156996
Mfg# 8411
LFS# BSS8411
UNIT: Each
Panel: AC PowerFeatures: Breakers, Backlit, LED IndicatorsBreakers / Switches: 8 Position
Out of stock - Typically Available in 3 - 6 Weeks

Blue Sea Systems, AC Distribution Panel, 120 Volt, 8 Positions, No Meters.

  • All hot, neutral, and safety ground buses installed, fully pre-wired
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions
  • Maximum panel amperage - 100 Amperes
  • MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
  • Two-part polyurethane slate gray finish, heavy 1/8" aluminum 5052 alloy
  • Industry standard 4.5" (114.30 mm) height and 10.5" (266.70 mm) width
  • Countersunk mounting holes throughout
  • Detailed installation instructions and cutout template included
  • Includes set of 30 common Large Format Labels
  • Installed Single Pole Circuit Breakers: 6 (15A)
