ACR OLAS GUARDIAN

Wireless Engine Kill Switch and Man Overboard (MOB) Alarm System

The ACR OLAS Guardian is a small wireless engine kill switch that acts within two seconds of a person going overboard. It has the dual function of also acting as an instant Man Overboard (MOB) Alarm system. OLAS GUARDIAN offers powerboat, motorboat, and RIB drivers the security of knowing that their boat will stop in an instant, should the skipper or crew gets separated from the boat, reducing the chances of a serious accident from a loose, unmanned, uncontrolled vessel. They are free to move around their boat without constantly having to remember to attach, detach, and re-attach a physically wired kill cord. The GUARDIAN provides coverage for vessels up to 50 feet and is scalable via the use of the OLAS EXTENDER for use on vessels up to 80 feet.

NOTE: As of April 1, 2021, the U.S. Coast Guard implemented a new law passed by Congress requiring the use of engine cut-off switches (ECOS) and the associated engine cut-off switch link (ECOSL) on recreational vessels. The law is relevant to all federally navigable waterways and specifically applies to recreational vessels with the following characteristics:

• Vessels less than 26 feet in length
• Vessels with an engine capable of 115 lbs. static thrust (approximately 2-3 hp)
• Vessels built in January 2020 or later

Exemptions to the law are as follows:

• The law is not applicable to law enforcement or other government-owned vessels
• There is no requirement to wear the ECOSL if either the main helm is installed within an enclosed cabin or if the vessel does not have an ECOS and is not required to have one
• The ECOSL does not need to be attached/active when the vessel is operating at less than displacement speed (ie. the vessel isn’t operating on the plane). This applies to common activities such as idling, docking/trailering, trolling, and operating in no-wake zones.

The GUARDIAN functions as a wireless kill cord, which when connected to your engine's kill switch will stop the engine within two seconds of becoming disconnected. Given that the OLAS GUARDIAN also wirelessly connects up to 15 crew members via wearable OLAS transmitters (OLAS Tags or OLAS Float-On Lights), it essentially creates a virtual kill cord attached to each transmitter. Within two seconds of an OLAS transmitter losing connection, either by going overboard or via separation by distance, the engine will cut out, and a loud alarm is triggered. The engine can be restarted after five seconds, and a rescue can be performed. The rescue process is then simplified by the GUARDIAN’s ability to connect with the ACR OLAS mobile app which, in the case of a MOB incident, provides an easy-to-read directional screen showing the direction where the alarm was triggered and advises on the correct mayday call. The ACR OLAS GUARDIAN is a wireless engine kill switch and MOB alarm system that provides users with a robust set of safety features. The system offers a comprehensive list of distinct advantages including:

• OLAS Mobile App Operation

OLAS Guardian is easily operated via the OLAS Mobile APP, which enables you to set how long it should take before the engine is shut off. The app also enables selecting if the external alarm when a Tag wearer is out of range should activate on both the GUARDIAN and your mobile device.

• Run alongside existing Kill switch

OLAS Guardian can be used in place of or alongside an existing kill cord switch and will operate if the physical kill cord has not been attached to the driver.

On most engines, a simple parallel connection to the existing kill switch will enable the full wireless cut-off capability.

• Automatic restart

After 5 seconds the kill switch is deactivated enabling the engine to be restarted

• Inbuilt Alarm

An 85db alarm will sound to indicate an OLAS transmitter has gone out of range

• Inbuilt Emergency Light

A high-power emergency Red light will illuminate, offering a clear visual indication of an alert whilst also acting as a light to illuminate the surrounding area

• Relay selection

The OLAS App allows individual relay selection for easily adjusting if the OLAS transmitter triggers the engine cut-off/relay, or only triggers the Guardian's inbuilt MOB alarm

• Automatic connection

When you board your vessel and switch on the power, OLAS Guardian will automatically connect to any switched on OLAS transmitting devices within 2 meters range.

• No connection alert and override

If you board the vessel and no transmitters are switched on, the Guardian will sound an alert. This alert can be stopped either by connecting the OLAS transmitter to the Guardian or the Guardian can be manually switched off. After which the vessel can be driven as usual using the existing physical safety kill cord.

• Pause mode

The system can be placed in pause mode. This is used when you need to leave the boat with the engine idling, such as walking down a pontoon, knowing the OLAS transmitter will go out of range

• Connects up to 15 OLAS Transmitters (OLAS Tags or OLAS Float-On)

Up to 15 transmitters allow larger vessels to connect crew and objects to the Guardian. Simply by attaching a transmitter to an object such as a MOB flotation device or yacht tender you can always be aware if something has gone missing.

• Extender compatible

An OLAS Extender can be used to cover areas where the transmitter signal may be blocked. This allows use on larger vessels up to 80ft and the ability to scale the system up if required.

Set up and monitoring

• 12/24V wired

The Guardian module can be connected to your vessel's power supply to ensure it is always connected when you have the power running. The power wires can simply be spliced into an existing power supply from the boat’s battery.

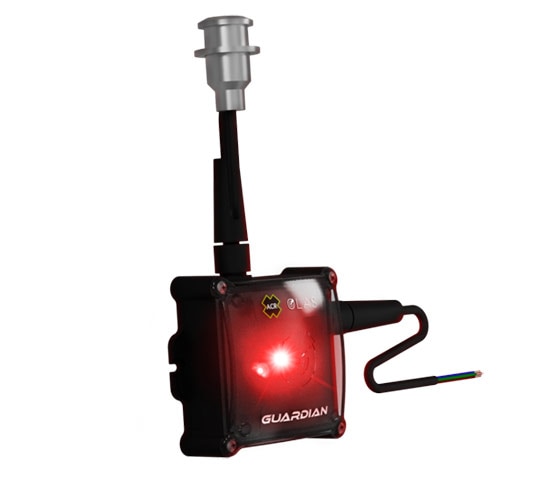

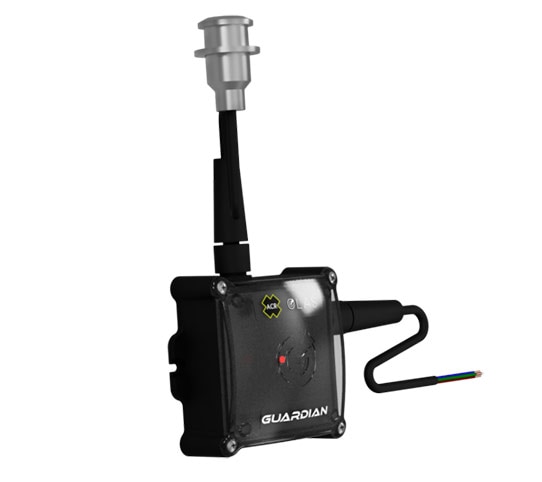

• Through panel mounting

The compact, stainless steel switch requires minimum adjustment to your existing center console, allowing it to be fitted through an 18mm hole

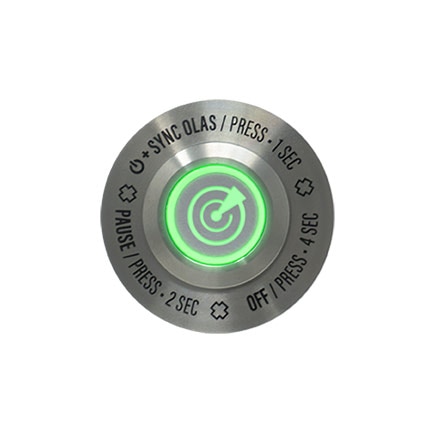

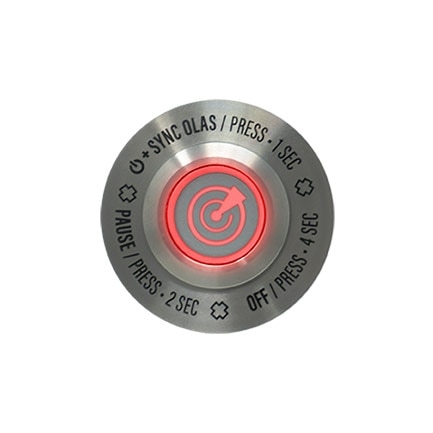

• Color-coded control switch

The color-coded control switch makes the system easy to control and setup, without the need for the OLAS App. During the setup process, it will indicate the automatic setup stages with red indicator light. When the system is running it shows a green light, switching back to red in an alarm situation.

• OLAS Mobile App data and monitoring

Monitoring tracked OLAS Transmitters enabling customized ID names for easy identification

It records the GPS location of the Alert position and guides the user back to the location and advises on the correct mayday call.

Selects which devices initiate the engine cut-off

It monitors the battery level of OLAS tags

Adds/removes tags from the sample

Activates/Deactivates the Alarm system

Operate as an external Alarm

• System Feedback

The GUARDIAN indicates how many OLAS transmitters are connected during the setup process.

Transmitters can be Added to the system either using the mobile application or through a simple inbuilt switching process.

Key Features:

• ACR OLAS Free Mobile App Integration
• Ultra-Bright Red LED Visual Alarm
• 85 dB Audible Alarm
• Connect up to 15 ACR OLAS Transmitters
• Waterproof (IP67)
• Utilizes the latest Bluetooth^® 5.0 Technology
• Expand system coverage from 50 ft. to 80 ft. using the OLAS EXTENDER
• 12/24V Wired
• Color-Coded Control Switch
• Automatic engine restart
• Relay selection
• Automatic connection
• No connection alert and override
• Pause mode
• Run alongside existing Kill switch
