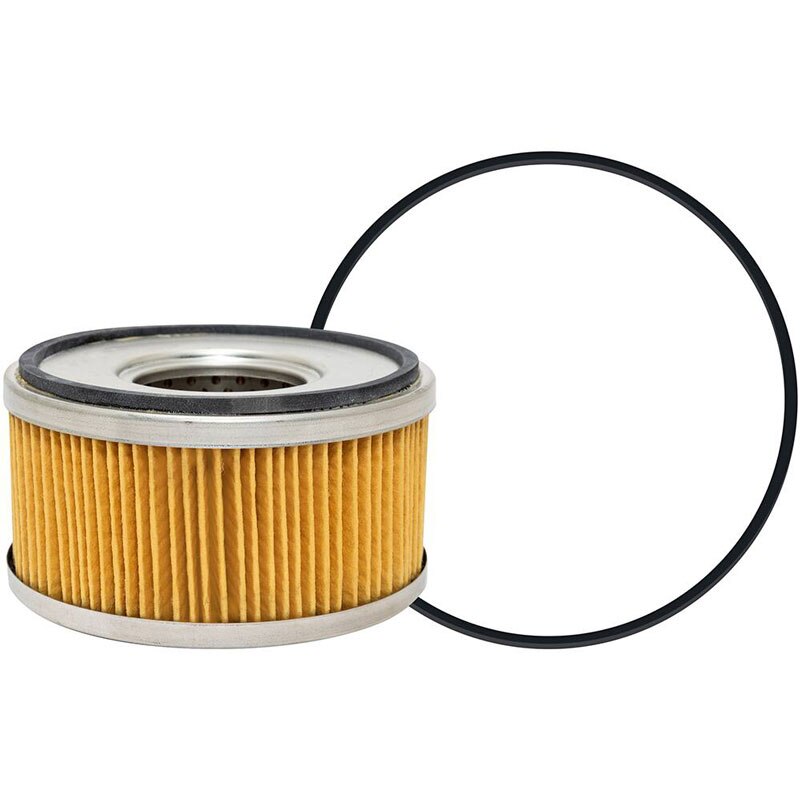

Baldwin-Dahl Fuel Filter, 101-30

DAHL marine fuel filters efficiently remove most water and solid contaminants from diesel fuel before it reaches pumps or injectors, thus prolonging parts life and reducing unscheduled downtime. DAHL’s functional dual-chamber, three-stage diesel fuel filter/water separators provide efficient suction side water separation and contaminant filtration. The key is the unique DAHL-patented depressurizer cone which spreads the fuel flow. With more area to flow over, greater separation of water and dirt from the fuel is achieved. DAHL diesel fuel filter/water separators have less mechanical flow resistance than other separators because the fuel only changes direction twice. The DAHL unit removes virtually 100 percent of the water and most of the contaminants from the diesel fuel.

Performance Characteristics

Substance

Diesel, bio-diesel blends up to B-20 and gasoline

Technology

Filtration

Thread Size

-

Width

-

Absolute Micron

40

Application

Diesel fuel particulate filtration and fuel-water separation

Brand

Hastings

Contains

-

Division

Engine Mobile Aftermarket

For Fluid Type

Fuel

For Use With

DAHL 100 Series Fuel Filter/Water Separator Units

Height

2 5/16 inch
58.7 mm

Includes

[1] Attached A Gskt, [1] Attached Grommets

Inside Diameter

5/8 (&) inch
42.9 mm

Length

2 5/16 inch
58.7 mm

Industry

Oil & Gas

Outside Diameter

4 7/32 inch
107.2 mm

Perinch

-

Product Type

DAHL Fuel Element
