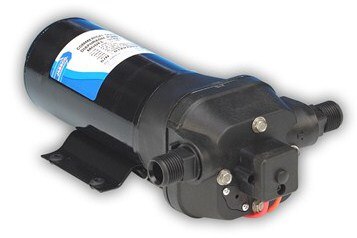

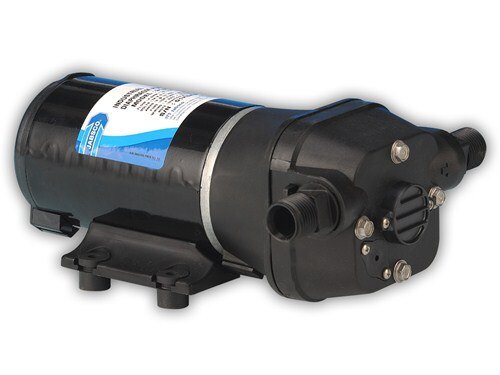

Jabsco, Diaphragm Pump, Industrial

Mfr: Jabsco

Jabsco, Diaphragm Pump, Industrial, 12 volt, No Pressure Switch
SKU: 322439
Mfg# 31800-0092
UNIT: Each
Flow Rate: 4 gpmVoltage: 12 voltFuse Rating: 10 ampHose / Pipe Size: 1/2" ID
Typically Ships Out in 1-2 Business Days
Jabsco, Diaphragm Pump, Industrial. Can run dry without damage, easy installation, quiet running.

  • Glass filled polypropylene body
  • Diaphragm made of Santoprene, valves made of Viton
  • 316 Stainless steel hardware
  • Four chamber diaphragm
  • Self-priming to 10 ft (3m) (wet), 5 ft. (1.5m) (dry)
  • Snap-in 1/2" (13mm) hose barb and 1/2" (13mm) straight pipe thread
  • Permanent magnet with thermal overload protection motor
  • Continuous duty at 15 psi (1 bar) and 70¡F (21¡C) ambient temperature
  • Liquid temperature range is 45¡F to 130¡F (7¡C to 54¡C)
  • Maximum viscosity is 250 cP

Jabsco PDF)
