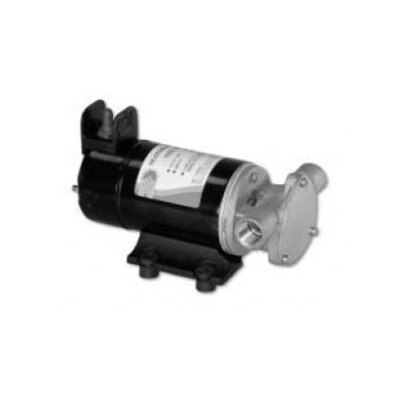

Jabsco, Vane Pump, Reversible, Diesel Fuel Capable, 12 volt 18680-1000

Mfr: Jabsco
$383.50

Starting at $35/mo with . Prequalify now

0 No Reviews yet
Jabsco, Vane Pump, Reversible, Diesel Fuel Capable, 12 volt 18680-1000
SKU: 86781
|
Mfg# 18680-1000
|
LFS# JAB186801000
|
UNIT: Each
Flow Rate: 7.9 gpmVoltage: 12 voltHose / Pipe Size: 1" ID, 1/2" FNPT
Out of stock - Typically Available in 3 - 6 Weeks

Jabsco, Reversible Vane Pump, Diesel Fuel Capable, 12 volt, 18680 Series. Complete and compact, with built in reversing switch and diesel fuel capable.

  • Flow rate: 7.9 US gpm (29.9 Liters/min)
  • Self-priming from dry up to 3' (1m)
  • Meets USCG 183.410 & ISO8846 Marine (Ignition Protection)
  • Body: Bronze
  • Rotor: Vectra
  • Vanes: Ryton
  • Seal: Nitrile Lip Seal
  • Shaft: Stainless steel
  • Port Type: 1/2" NPT Female or 1" (25mm) Hose barb
  • Voltage: 12 volt
  • Amp Draw: 8 amp
  • Fuse Size: 15 amp
  • Motor: Intermittent duty permanent magnet type with reversing switch
  • Duty Cycle: 30 minutes at 10' (3m) at 86degree F (30degree C)
  • 3-3/8" H x 8-5/8" L x 4-3/4" W, weighs: 5-1/2 lb (2.5kg)
  • Ideal for transferring diesel fuel
  • Self-priming to about three feet and can pump against a discharge head up to 20'
  • Integral on-off reversing switch
Motor with switch assembly meets USCG Electrical Standards (Title 33, Chapter 1, Part 183;Subpart 1) and ISO 8846 Marine for Ignition Protection on gasoline powered vessels. WARNING:Do not pump volatile liquids with a flash point below 100 Deg. F (38 Deg. C). Doing so can cause an explosion or fire resulting in injury or (more...)
