DESCRIPTION
Description

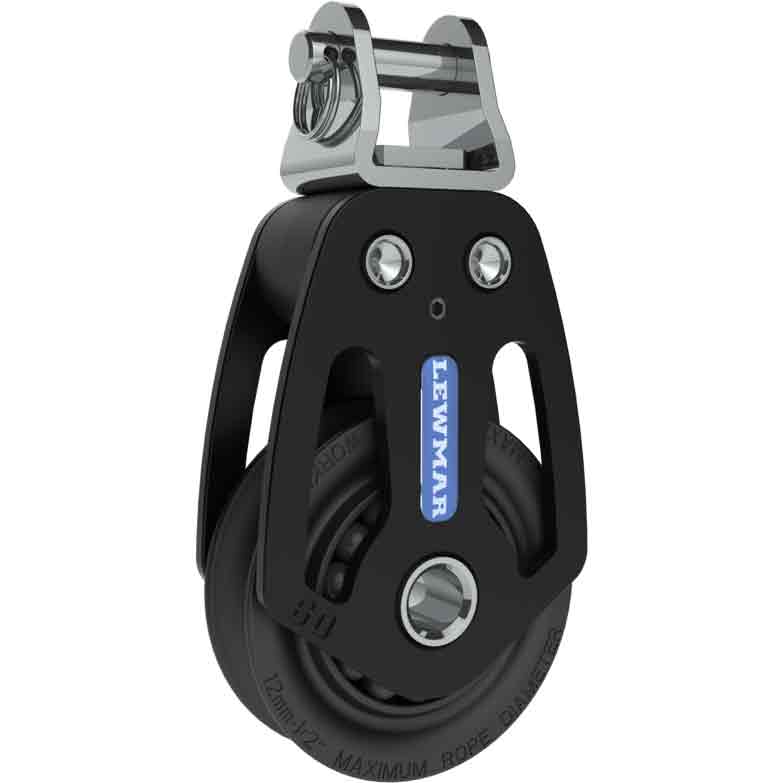

Years of design and manufacturing experience coupled with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.
Features
- Strong aluminium side cheeks
- Central plain bearing for efficiency at high loads
- Side thrust delrin ball bearings
- Toggle head designed to fit on the studs commonly found at mast bases
Specifications
Block (mm) | Line Size (in) | Working Load Limit (lb) | Breaking Load (lb) | Weight (oz) | A (in) | B (in) | C (in) |
---|---|---|---|---|---|---|---|
50 | 3/8 | 1762 | 3524 | 5.6 | 37/64 | 7/32 | 5/16 |
