DESCRIPTION
Description

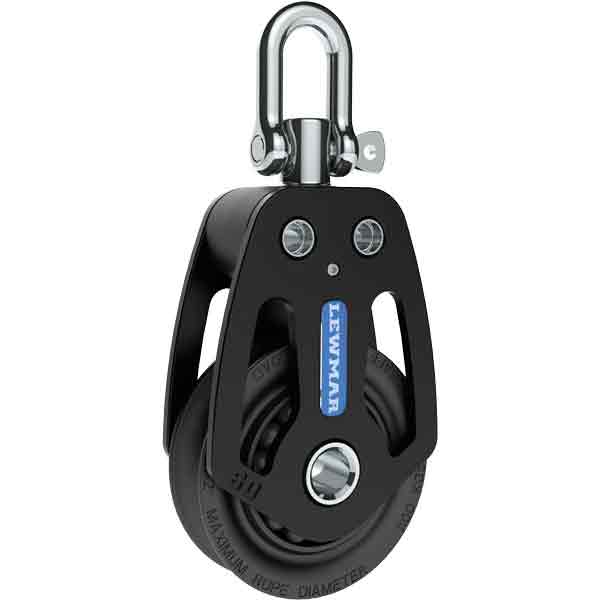

Years of design and manufacturing experience coupled with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.
Features
- Strong aluminium side cheeks
- Central plain bearing for efficiency at high loads
- Side thrust delrin ball bearings
- Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism
Specifications
| Block (mm) | Line Size (in) | Working Load Limit (lb) | Weight (oz) |
|---|---|---|---|
| 50 | 3/8 | 1762 | 4.7 |
| 60 | 1/2 | 2422 | 7.5 |
| 72 | 9/16 | 4405 | 15.6 |
SPECS
Item #
MPN
Lewmar Single HTX Block - 60mm
Item #:565738-60mm
MPN:29195021
Lewmar Single HTX Block - 50mm
Item #:565738-50mm
MPN:29195001
Lewmar Single HTX Block - 72mm
Item #:565738-72mm
MPN:29196001
