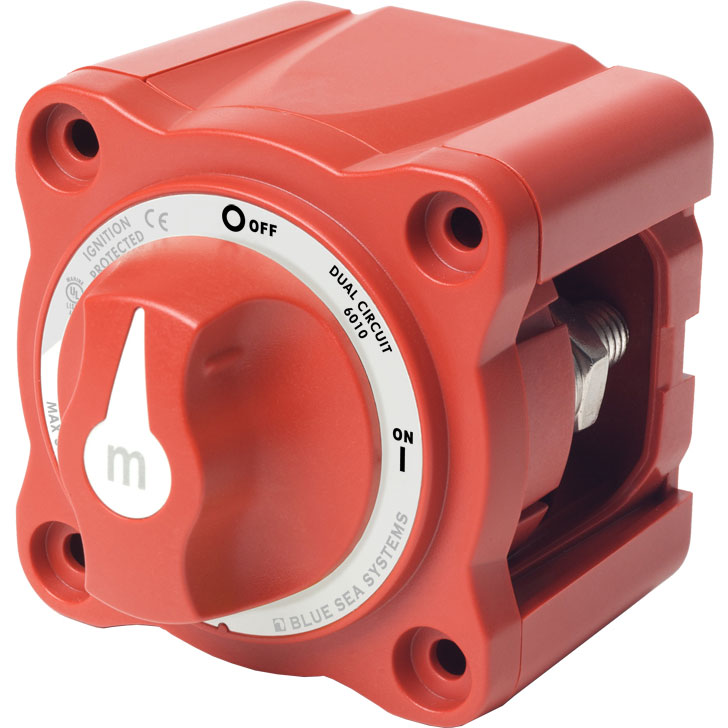

m-Series Mini Dual Circuit Battery Selector Switch, Red, 6010

Mfr: Blue Sea Systems
$44.22
m-Series Mini Dual Circuit Battery Selector Switch, Red, 6010
SKU: 239347
|
Mfg# 6010
|
LFS# BSS6010
|
UNIT: Each
In Stock - Ships out in 1 Business Day
Blue Sea Systems, m-Series Mini Dual Circuit Battery Selector Switch, Red, 6010.

  • Simultaneously switches two isolated battery banks
  • 300 Amps continuous rating for outboards and small gasoline or diesel engines
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22 mm) stud length accepts multiple cable terminals
  • One-piece terminal stud design never loosens over time
  • Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
  • Case design allows surface, rear, or front panel mounting options
  • 6 Icon label set included for circuit identification
  • Removable knob
  • Cranking Rating: 10 sec. @ 1,000 Amps per circuit
  • Cranking Rating: 1 min. @ 650 Amps per circuit
  • Intermittent Rating: 5 min. @ 450 Amps per circuit
  • Continuous Rating: 300 Amps per circuit
  • Maximum Operating Voltage: 32 Volts DC
