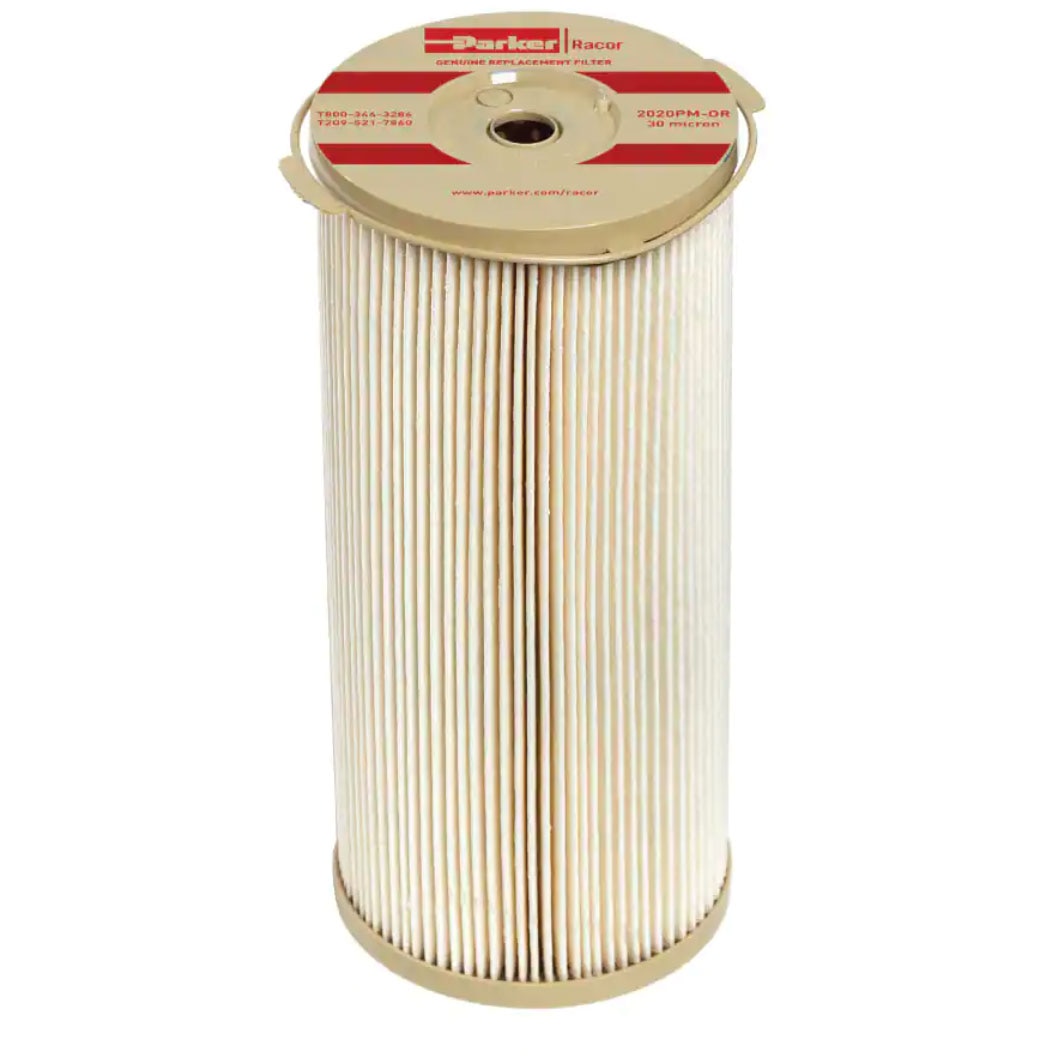

Replacement Cartridge Filter Element for Turbine Series Filters - Racor | #2020PM-OR

$15.03 On Sale
Replacement Cartridge Filter Element for Turbine Series Filters - Racor | #2020PM-OR
SKU: 94051
Mfg# 2020PM-OR
UNIT: Each
In Stock - Ships out in 1 Business Day


1000 Turbine Cartridge FF/WS element, rated at 98% at 30 microns with Tan potted endcaps.

<li>Product Style: Tan potted endcaps</li>
<li>Micron Rating: 98% @ 30 Micron</li>
<li>Height: 9.6" (24.4 cm)</li>
<li>Compatible Series: Filter Housing: 1000</li>
<li>Product Series: Cartridge FF/WS, Turbine</li>
<li>Brand: Racor</li>
<li>For Fluid Type: Diesel Fuel / B20</li>
<li>Application: Diesel Engines</li>
<li>Media: Aquabloc "30 micron"</li>
<li>Diameter: 4.7 inch, 11.9 cm</li>
<li>Weight: 12 oz, 0.34 kg</li>
<li>Package Type: Plastic wrapped with seals</li>
</ul>FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE. This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise. The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors. To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.

<p>Replacement Cartridge Filter Elements for Racor Turbine Series Filter Housings<br /><br />Note: 2020 and 2040 SM, TM, and PM elements ordered in North or South America may be substituted with the U.S. manufactured 2020N or 2040N style black endcap elements. Both element styles use the exact same Aquabloc&reg; media and their filtration performance is exactly alike. <br /><br />Overview:<br /><br />Diesel engine injector tolerances are measured in microns and the latest engines inject fuel at pressures over 30,000 psi (207 kPa). Under these conditions the smallest particle of dirt or water can score and erode precision components; leading to damage to engines, operations and profitability. <br /><br />Racor Turbine Series FF/WS have exceptional water removing efficiency for both bulk and emulsified water, low restriction of fuel flow and high dirt-holding capacity. The heart of the system is the three coalescing and filtration stages powered by the patented Aquabloc&reg; filter element. <br /><br />Stage 1 Separation: As fuel enters the filter assembly, it moves through the (stationary) turbine centrifuge and spins off large solids and water droplets which fall to the bottom of the collection bowl. <br /><br />Stage 2 Coalescing: Small water droplets bead-up on the surface of the conical baffle and cartridge element. When heavy enough, they fall to the bottom of the collection bowl.<br /><br />Stage 3 Filtration: Proprietary Aquabloc&reg; cartridge elements repel water and remove solid contaminants from fuel at 98% efficiency of their micron rating. Water collecting on the surface of the element coalesces into larger drops that fall into the collection bowl.<br /><br />Only genuine Racor cartridge filter elements feature Aquabloc&reg; Engineered Media for ultimate engine protection.<br /><br />Ordering Options:<br /><br />1. Choose housing type: 500, 900, or 1000 series housings. (Choose height first if the housing type is not known)<br /><br />2. Choose Rated Micron:<br />&bull; &ldquo;2&rdquo; micron Aquabloc&reg; element rated at 98% efficiency at 4 microns<br />&bull; &ldquo;10&rdquo; micron Aquabloc&reg; element rated at 98% efficiency at 10 microns<br />&bull; &ldquo;30&rdquo; micron Aquabloc&reg; element rated at 98% efficiency at 30 microns<br />3. Choose height if housing type is not known.<br />4. Choose end cap style. Black molded endcap style is available for the U.S. market. The tan potted style is available everywhere else. Both styles have identical filtration performance.<br /><br />Important Notes: <br /><br />&bull; A secondary or final filter is required downstream for 10 and 30 micron elements.<br />&bull; Replacement seals included<br />&bull; The lower the micron rating the finer the filtration. Lower micron ratings should be considered when there is no additional downstream filtration. Ultimately, the micron rating preferred will be a function of fuel quality, operating climates and maintenance schedules.<br />&bull; End caps are color-coded for easy identification and application &ndash; red lettering for 30 micron primary filtration, blue lettering for 10 micron primary or secondary, and brown lettering for 2 micron secondary/final filtration.<br /><br />Features and Benefits:<br /><br />&bull; An integral bail handle makes change-outs easy. <br />&bull; Racor&rsquo;s toll-free number is shown on the end cap. It puts you in touch with Racor&rsquo;s technical service staff who can answer any availability, application, or service question.<br />&bull; Aquabloc&reg; media is a blend of high-grade cellulose compounded with resins and a special chemical treatment. <br />&bull; Genuine Racor Turbine Series are compatible with UL Approved Turbine Housings<br /><br />Aquabloc&reg; - The Inside Story:<br /><br />Racor&rsquo;s ultra-high-efficiency Aquabloc&reg; media is an engineered blend of distinct media formulations &ndash; high-grade cellulose compounded with engineered fibers and chemical treatments proven to block water.<br /><br />&bull; High contaminant capacity allows less frequent filter changes, boosting operating economy.<br />&bull; Aquabloc&reg; media is both corrugated and pleated to keep pleats open and present a large effective filtration surface area to the diesel fuel flow.<br />&bull; The high dirt-holding capacity Aquabloc&reg; media dramatically extends the life of final-stage on-engine filters, and reduces the overall cost of filtration maintenance.<br />&bull; Aquabloc&reg; cartridge filter elements are available in 2, 10, and 30 micron ratings so that protection can be tailored to the application, fuel quality, operating environments and service schedules.<br />&bull; Aquabloc&reg; media helps OEMs diesel engines adhere to rigid government emission standards.<br />&bull; A fuel filter/water separator with replaceable cartridge element is the lowest-cost filtration solution.<br /><br />Applications:<br /><br />&bull; All diesel engines with a Turbine Series filtration system<br />&bull; Marine, generator, construction, on highway, off highway</p>
