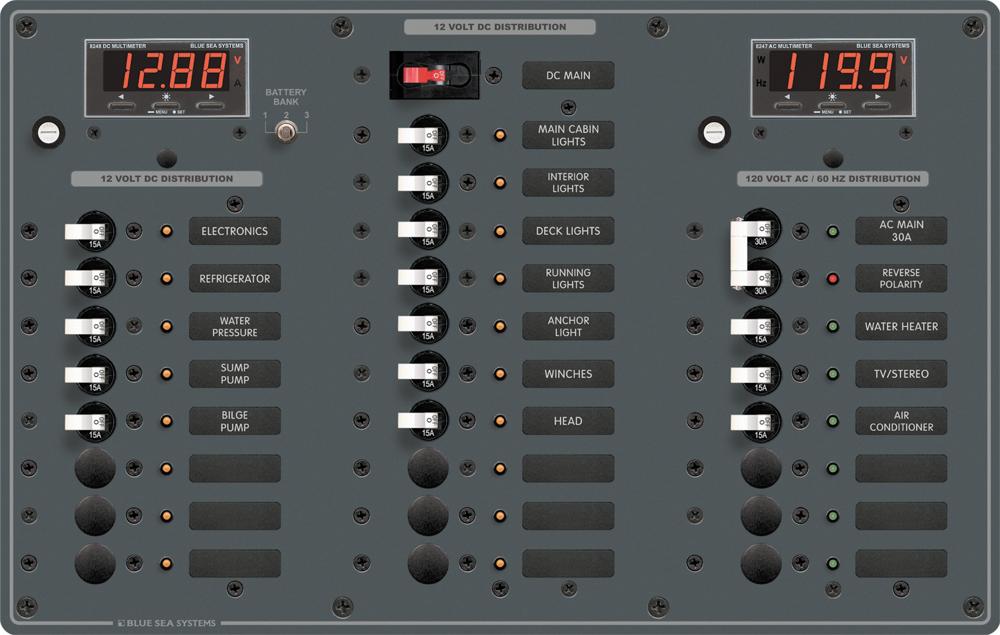

AC / DC Panel, 120 Volt Main + 6 Positions, 12/24 Volt Main + 18 Positions, Digital Multimeters
Blue Sea Systems, AC / DC Distribution Panel, 120 Volt Main + 6 Positions, 12/24 Volt Main + 18 Positions, Digital Multimeters. Combines AC and DC switching, circuit protection, source selection and monitoring into a single panel.
- All AC and DC buses installed and fully pre-wired
- Label back lighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
- Maximum panel amperage - 100 Amperes DC, 50 Amperes AC
- MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Detailed installation instructions and cutout template included
- Countersunk mounting holes throughout
- Includes set of 60 common AC and DC Large Format Labels
- Over 500 individual labels available
- AC Volts: 120 Volts AC
- AC Positions: AC Main + 6 Positions
- Weight Lb (Kg): 8.73 (3.96)
- DC Positions: DC Main + 18 Positions
- Installed AC Circuit Breakers: 1 (30A), 3 (15A)
- DC Volts: 12/24 Volts DC
- Installed DC Circuit Breake(more...)
