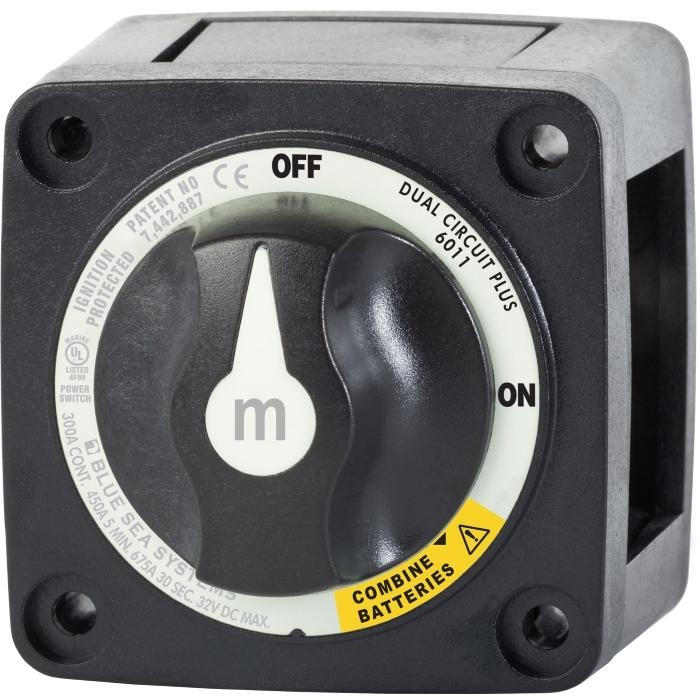

Blue Sea, 6011200, m-Series Mini Dual Circuit Plus Battery Switch, Black

$49.50
Blue Sea, 6011200, m-Series Mini Dual Circuit Plus Battery Switch, Black
SKU: 534622
|
Mfg# 6011200
|
LFS# BSS6011200
|
UNIT: Each
Switch Type: Dual Circuit PlusColor: BlackSwitch Positions: 3Max Voltage: 32V DCTerminal Stud Torque: 120 in-lb (13.56 Nm)Continuous Rating: 300AIntermittent Rating: 450ABattery Inputs: 2
In-stock, 1-2 days to leave warehouse
  • Simultaneously switches two isolated battery banks or combines battery banks to all loads
  • Make before break contact design allows switching between battery banks without power interruption
Specifications
Switch Type Dual Circuit Plus
ColorBlack
Switch Positions3
Battery CombineYes
Alternator Field DisconnectNo
Maximum Voltage32V DC
Stud Size3/8"
Terminal Stud Torque120 in-lb (13.56 Nm)
Continuous Rating 300A
Intermittent Rating 450A (5 min)
Cranking Rating 30 sec 675A per circuit
Battery Inputs2
Cable Clearance For 4/0 AWG Cables1.12in (28.45 mm)
Cable Size to Meet Ratings4/0 AWG (120mm²)
Mounting HolesAccept #10 Screw
Stud MaterialTinned Copper
Stud Torque120 in-lb (13.56 Nm)
Terminal Stud Size3/8" - 16 (M10)
Weight0.80Lb (0.36 Kg)
Weight0.80lb (0.36 kg)
