DESCRIPTION

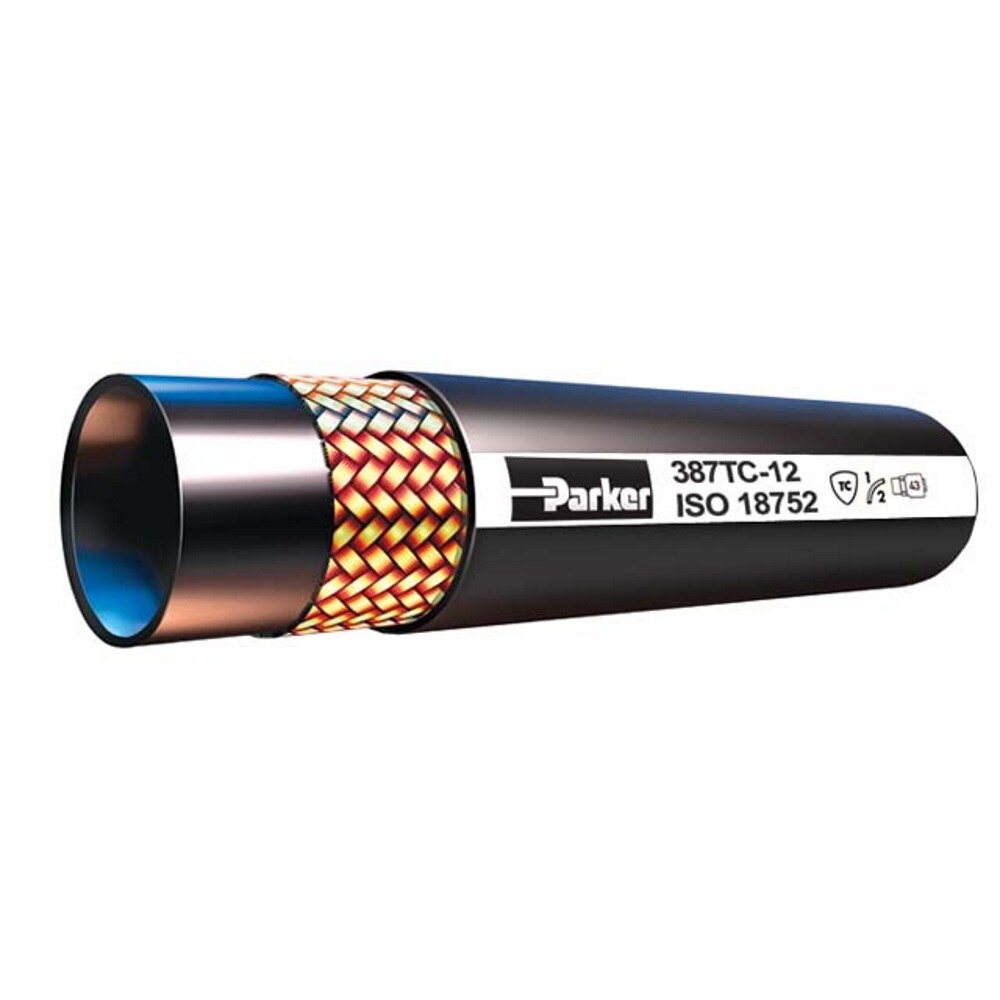

Parker’s GlobalCore 387 hose provides 3,000 psi (21 MPa) constant working pressure in all sizes. Available in a variety of cover options so you can match the right cover to your application, 387 hose offers you the choice of Standard, ToughCover and SuperTough. Designed, built and tested to the ISO 18752 performance specification, Parker’s 387 hose is unmatched in today’s marketplace.
½ ISO 18752 minimum bend radius. Low force to flex for ease of installation.
Exceeds ISO 18752 performance specification (AC, BC & CC).
TC cover provides 80 times the abrasion resistance compared to Standard rubber cover hose.
3,000 psi constant working pressure in all sizes.
Synthetic rubber inner tube provides a wider range of fluid compatibility.
ST cover provides 450 times the abrasion resistance compared to Standard rubber cover hose.
Working Pressure: 3000
Temp: 100°C (212°F)
Inner tube: Synthetic Rubber
Impulse Pressure (% of MWP): 133%
Cover: Synthetic Rubber Abrasion Resistant
Grade: A
Minimum # of Cycles: 200,000
½ ISO 18752 minimum bend radius. Low force to flex for ease of installation.
Exceeds ISO 18752 performance specification (AC, BC & CC).
TC cover provides 80 times the abrasion resistance compared to Standard rubber cover hose.
3,000 psi constant working pressure in all sizes.
Synthetic rubber inner tube provides a wider range of fluid compatibility.
ST cover provides 450 times the abrasion resistance compared to Standard rubber cover hose.
Working Pressure: 3000
Temp: 100°C (212°F)
Inner tube: Synthetic Rubber
Impulse Pressure (% of MWP): 133%
Cover: Synthetic Rubber Abrasion Resistant
Grade: A
Minimum # of Cycles: 200,000
SPECS
Item #
MPN
Working Pressure
Hose ID
Hose OD
Temp
Inner tube
Impulse Pressure (% of MWP)
Min Bend Radius
Cover
Parker 387 GlobalCore Hydraulic Hose, 1/2"
Item #:560743-3/4"
MPN:387TC-12-RL
Working Pressure: 3000
Hose ID: 3/4"
Hose OD: 0.82"
Temp: 100°C (212°F)
Inner tube: Synthetic Rubber
Impulse Pressure (% of MWP): 1.33
Min Bend Radius: 3-1/2"
Cover: Synthetic Rubber Abrasion Resistant
Parker 387 GlobalCore Hydraulic Hose, 3/8"
Item #:560743-3/8"
MPN:387TC-6-RL
Working Pressure: 3000
Hose ID: 3/8"
Hose OD: 0.69"
Temp: 100°C (212°F)
Inner tube: Synthetic Rubber
Impulse Pressure (% of MWP): 1.33
Min Bend Radius: 2-1/2"
Cover: Synthetic Rubber Abrasion Resistant
Parker 387 GlobalCore Hydraulic Hose, 1/2"
Item #:560743-1/2"
MPN:387TC-8-RL
Working Pressure: 3000
Hose ID: 1/2"
Hose OD: 0.82"
Temp: 100°C (212°F)
Inner tube: Synthetic Rubber
Impulse Pressure (% of MWP): 1.33
Min Bend Radius: 3-1/2"
Cover: Synthetic Rubber Abrasion Resistant
Parker 387 GlobalCore Hydraulic Hose, 1"
Item #:560743-1"
MPN:387TC-16-RL
Working Pressure: 3000
Hose ID: 1"
Hose OD: 1.40"
Temp: 100°C (212°F)
Inner tube: Synthetic Rubber
Impulse Pressure (% of MWP): 1.33
Min Bend Radius: 6"
Cover: Synthetic Rubber Abrasion Resistant
Parker 387 GlobalCore Hydraulic Hose, 1/4"
Item #:560743-1/4"
MPN:387TC-4-RL
Working Pressure: 3000
Hose ID: 1/4"
Hose OD: .053"
Temp: 100°C (212°F)
Inner tube: Synthetic Rubber
Impulse Pressure (% of MWP): 1.33
Min Bend Radius: 2"
Cover: Synthetic Rubber Abrasion Resistant
