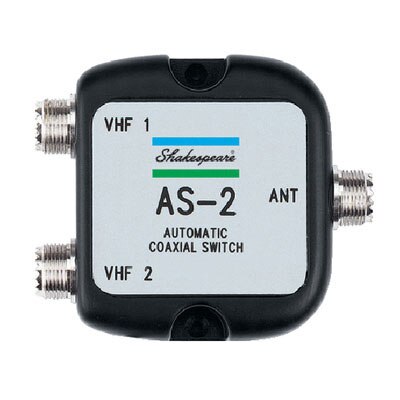

Shakespeare, 2-Position, Marine Grade, AS-2 Automatic Coaxial Switch

Shakespeare, 2-Position, Marine Grade, AS-2 Automatic Coaxial Switch
SKU: 232751
|
Mfg# AS2
|
UNIT: Each
Contact us for availability

Shakespeare, 2-Position, Marine Grade, AS-2 Automatic Coaxial Switch. This automatic switch from Shakespeare toggles two radios to one antenna. The automatic switch mounts out of the way, because you don't have to get at it to use it. When you key the microphone on one of the radios, the AS-2 switches the antenna to it automatically. The radio stays locked onto the antenna until the automatic switch detects a transmit from the other radio. Easy!

  • Frequency Range: up to 600 MHz
  • VSWR: Below 1.2:1
  • Power Rating: 30 W
  • Impedance: 50 ohms
  • Connections: SO-239 type
  • Power Supply: 12 vDC @ 200 ma
  • Sensing/Switching Time: Less than 100 ms
