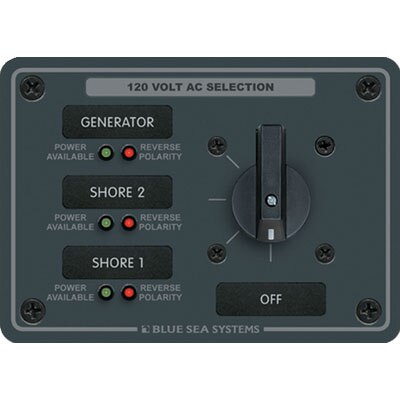

AC Rotary Switch Panel, 30 Amp, 3 Positions + OFF, 2 Pole, 8366

Mfr: Blue Sea Systems
$221.62
AC Rotary Switch Panel, 30 Amp, 3 Positions + OFF, 2 Pole, 8366
SKU: 239234
|
Mfg# 8366
|
LFS# BSS8366
|
UNIT: Each
Panel: AC PowerFeatures: Selector Switch, Backlit, LED Indicators
Typically Ships Out in 5 Weeks
Blue Sea Systems, AC Distribution Panel, 120 Volt Main + 1 Position, No Meter. The AC Main power system provides a path for delivering power from the ship's source of AC power to the AC branch distribution system.

  • Red reverse polarity indicating LED
  • All hot, neutral and safety ground buses installed, fully pre-wired
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions
  • Maximum panel amperage: 50 Amps
  • MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
  • Two-part polyurethane slate gray finish
  • Heavy 1/8" aluminum 5052 alloy
  • Industry standard height and width
  • Countersunk mounting holes throughout
  • Detailed installation instructions and cutout template included
  • Over 500 individual labels available

Specifications
Positions: AC Main + 1
Voltage: 120 Volt
Installed Double Pole Circuit Breakers: 1 (30A)
Dimensions
Width: 5.25" (133.35mm)
Height: 3.75" (95.25mm)
Weight: 0.95 lb (0.43 kg)
