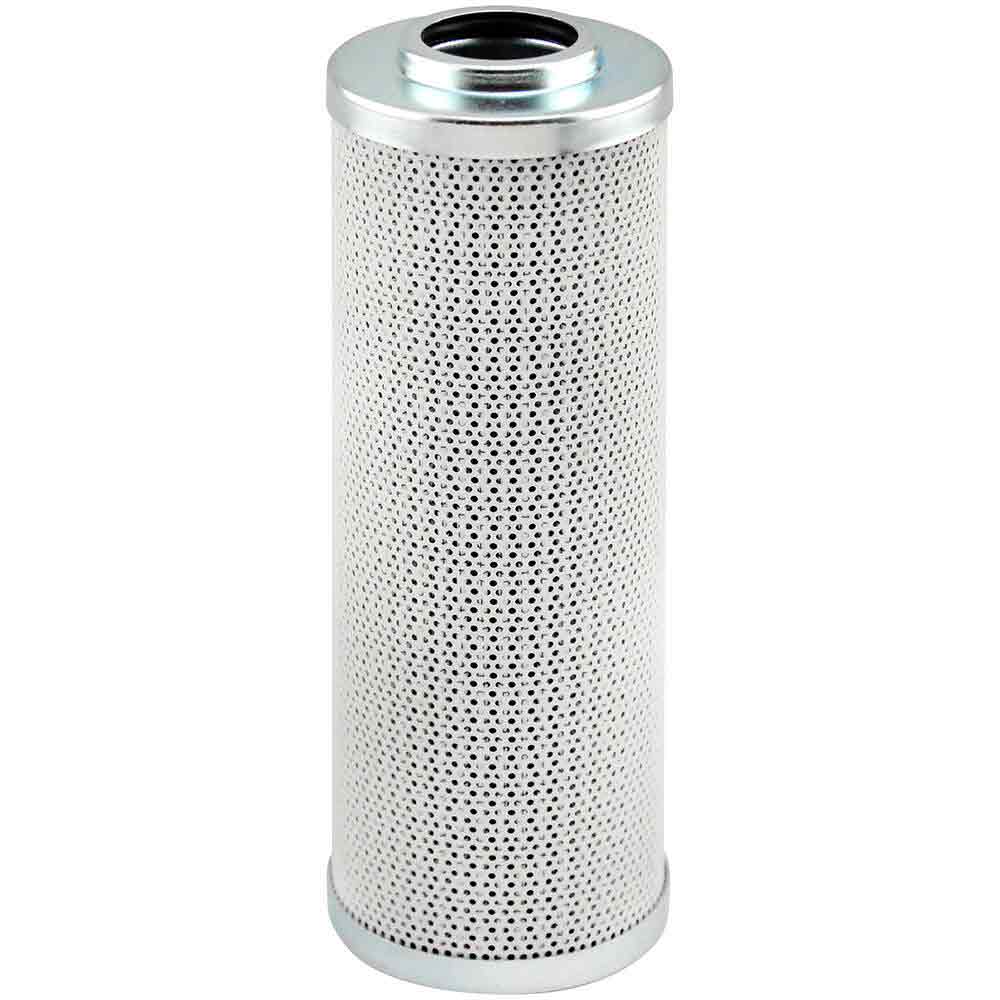

Baldwin PT9304-MPG Wire Mesh Supported Maximum Performance Glass Hydraulic Filter Element

Technical Specifications

• Product Type: Wire Mesh Supported Maximum Performance Glass Hydraulic Element
• Outside Diameter: 2 7/32 (56.4)
• Inside Diameter: 15/16 (23.8) One End
• Length: 6 21/32 (169.1)
• Compatible Competitor Part Number: Genie 60857; Hydac 75D005BNHC; Woodgate WGHH75005DB
• Brand: Baldwin
• Division: Engine Mobile Aftermarket
• Industry:
  • Marine
  • Mining
  • Oil and gas
  • Construction
  • Agriculture
  • Compressor
• Technology: Filtration
• Product Style: Hydraulic Filter
• No CAD files available

Item Information

Baldwin hydraulic filters offer superior protection for your engine-powered equipment. Improving system fluid cleanliness levels, providing better cold start performance and meeting service interval expectations are the primary objectives in the design of Baldwin hydraulic elements. Baldwin hydraulic elements utilize cellulose, synthetic and blended media to meet these performance specifications. A full range of filters is available to accommodate low, medium and high pressure applications.
