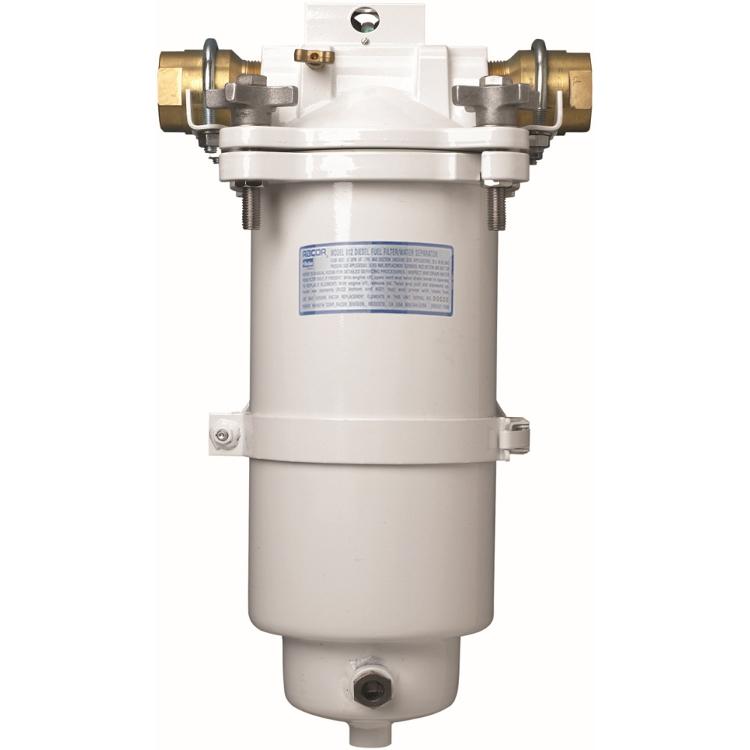

Marine Fuel Hydrocarbon Filtration Housing, Only - No Filter Element

Mfr: Racor (Parker Hannifin Corp.)
FBO-14-MA, Marine Fuel Hydrocarbon Filtration Housing, Only
SKU: 240939
Mfg# FBO-14-MA
UNIT: Each
Type: Filter Marine HydrocarbonDescription: -Size: 14"Port/ Connection Size: 1.5" NPTWeight: 29 lb.Additional Detail: Sight Glass and Pressure Gauge are Standard
In Stock - Ships out in 1 Business Day

Racor, FBO Marine Fuel Filter Water Separators are for high-flow fuel applications. The FBO assembly is used as a primary fuel filter_water separator on large diesel applications, as well as on mobile refuelers and fleet re-fueling pumps. In engine applications, it is specifically designed for high pressure common rail diesel injection systems. The FBO assembly can flow from 5 gpm to 75 gpm, depending on the model, element, and type_viscosity of fuel to be filtered. The large 5.1 oz sump is ideal for applications experiencing high volumes of water in the fuel. Common applications include marine vessels, diesel locomotives, mining trucks, mobile refuelers, fuel docks, etc.

  • Elements and housings are sold separately
  • Suitable for jet fuel, aviation gas, diesel fuel, gasoline, kerosene, JP4, JP5 and JP8
  • Locking ring collar offers simple element change outs, by one person, without tools
  • Marine models are white; industrial models are black
  • 1.5" NPT inlet and outlet
  • Rated at 150 PSI at 240 deg.F; max. working pressure is 75 psi
  • Water level sight glass on L and Marine models
  • Manual water drain valve; manual vent valve
  • Mounting bracket included with Marine models
  • Option for water sensor probe(more...)
